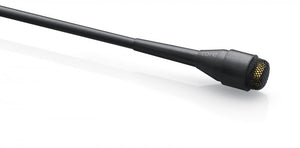

DPA 4061-OC-C-B00

The 4061-OC-C-B00 is designed for use with wireless systems in performance and theatrical presentations. The Core 4061 miniature microphone amplifier delivers a 4 dB increase in dynamic range and a 14 dB decrease in THD (total harmonic distortion) over the 4061 Legacy model. Because of its small size, the microphone is highly unobtrusive and is suitable for broadcast, live stage, and instrument applications as well.

The d:screet Core 4061 includes interchangeable capsule protection grids that alter the sonic character of the microphone. A high-boost grid creates a peak at 12 kHz, bringing an airy texture to audio signals. The soft-boost grid creates a subtle boost between 8 to 20 kHz, enhancing signal presence.

With an SPL rating of 144 dB, the microphone is more than capable of reproducing transient (peaking) audio before clipping. The Core 4061 is powered via +48V phantom power and features a MicroDot output connector, compatible with various wireless microphone transmitters, or power supplies with standard XLR outputs.

• Rugged and reliable

• Natural audio quality

• Low-noise

• Large selection of accessories

Directional pattern: Omnidirectional

Principle of operation: Pressure

Cartridge type: Pre-polarized condenser

Frequency range: 20 Hz - 20 kHz

Frequency range, ±2 dB: Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz

Sensitivity, nominal, ±3 dB at 1 kHz: 20 mV/Pa; -34 dB re. 1 V/Pa

Equivalent noise level, A-weighted: Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))

Equivalent noise level, ITU-R BS.468-4: Typ. 35 dB (max. 38 dB)

Distortion, THD < 1% - CORE: 134 dB SPL RMS, 137 dB SPL peak

Dynamic range - CORE: Typ. 111 dB

Max. SPL, THD 10%: 144 dB SPL peak

Rated output impedance: 30 - 40

Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR Adapter

Power supply (for full performance):

For wireless systems Min. 5 V - max. 10 V through DPA adapter

With DAD6001-BC: P48 (Phantom Power). Will work from 12 V

Current consumption Typ.: 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter

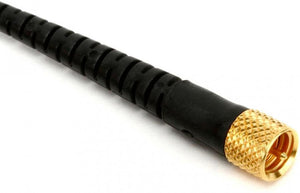

Connector: MicroDot

Color: Black,

Weight: 7.5 g (0.26 oz) incl. Cable and MicroDot connector

Microphone diameter: 5.4 mm (0.21 in)

Microphone length: 12.7 mm (0.5 in)

Cable length: 1.8 m (5.9 ft)

Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin

Temperature range: -40C to 45C (-40F to 113F)

Relative humidity (RH): Up to 90%

Sensitivity selection tolerance (at 1 kHz): ±1.5 dB
