DPA 5006A

The DPA 5006A is a complete DPA 4006A Surround Kit with five carefully factory-matched omni microphones. Even though the standard tolerances on DPA Reference Standards are extremely low, the surround match is even closer.

The specially selected DPA 4006A microphones are matched within ±0.5 dB on both frequency response and sensitivity from mean of set. The maximum phase response difference is 5.

The natural sound, high sensitivity, low noise-floor and extremely linear frequency response from 10 Hz to 20 kHz (±2 dB) of the microphones make the DPA 4006As the perfect choice for all AB Stereo, Decca Tree or surround main array recordings. The precise reproduction, total transparency and natural-sounding clarity of a DPA 4006A microphone will provide you with a lifetime of satisfying listening.

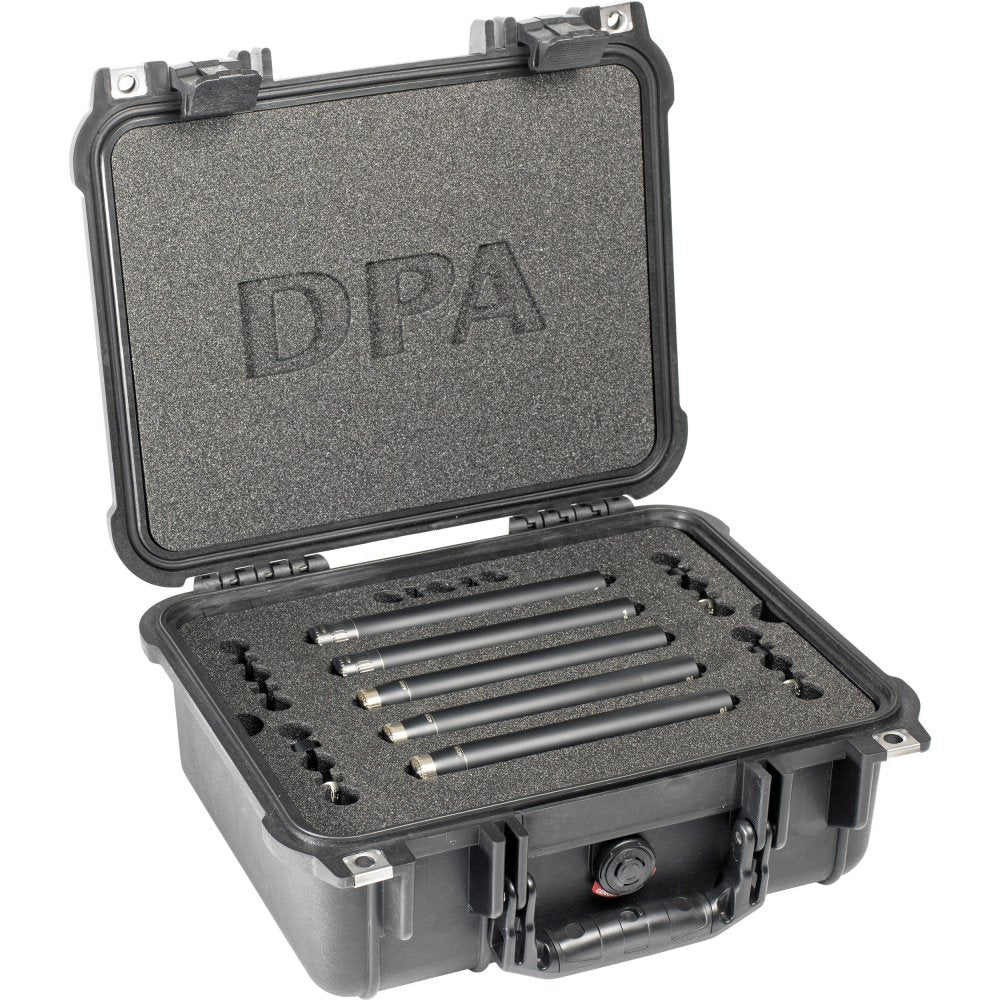

The foam design in the heavy-duty transportation box allows for fast and easy exchange of microphone/accessory.

Included in this kit Carefully matched microphones, sturdy Peli case, holders, grids, and windscreens.

• Wide pickup area and natural sound

• Five carefully matched microphones

• Ambience pickup with convenient directionality

• Peli™ Case transportation and protection

• Directional pattern: Omnidirectional

• Principle of operation: Pressure

• Cartridge type: Pre-polarized condenser

• Frequency range: 10 Hz - 20 kHz

• Frequency range, ± 2 dB: 10 Hz - 20 kHz

• Sensitivity, nominal, ± 2 dB at 250 Hz: 40 mV/Pa; -28 dB re. 1 V/Pa

• Equivalent noise level, A-weighted: Typ. 15 dB(A) re. 20 µPa (maks. 17 dB(A))

• Equivalent noise level, ITU-R BS.468-4: Typ. 27 dB (max. 29 dB)

• S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 79 dB(A)

• Total Harmonic Distortion (THD): < 1 % up to 139 dB SPL peak

• Dynamic range: Typ. 124 dB

• Max. SPL, peak before clipping: 147 dB

• Switchable attenuator: 0 dB / -20 dB

• Output impedance: < 200 ohm

• Minimum load impedance: 2 kohm

• Cable drive capability: 100 m (328 ft)

• Output balance principle: Impedance balancing with Active Drive

• Common Mode Rejection Ratio (CMRR): > 60 dB

• Power supply (for full specifications): 48 V Phantom power (± 4 V)

• Current consumption: 2.8 mA

• Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase

• Color: Matte black

• Weight: 163 g (5.7 oz)

• Microphone diameter: 16 - 19 mm (0.6 - 0.75 in)

• Capsule diameter: 16 mm (0.6 in)

• Microphone length: 170 mm (6.7 in)

• Output voltage, RMS: > 5 V

• Polarity: +V at pin 2 for positive sound pressure

• Temperature range: -40 C to 50 C (-40 F to 122 F)

• Relative Humidity (RH): Up to 90%

• Matching tolerance (freqency response, sensitivity): ± 0.5 dB

• Phase deviation for kit: < 5
