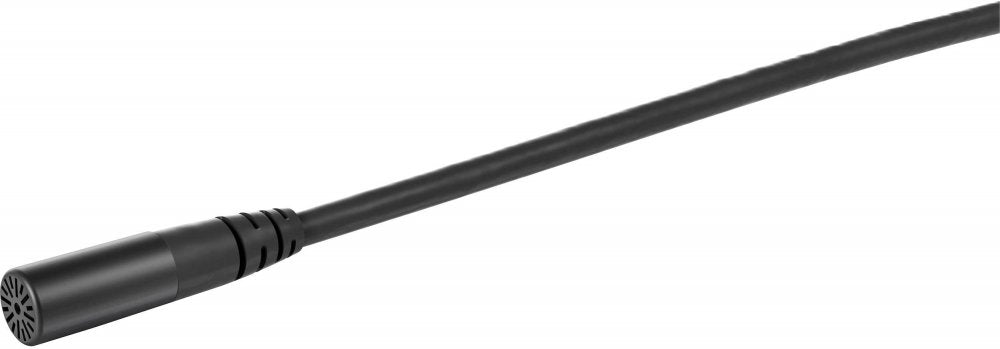

DPA 6060-OC-U-B56

d:screet 6060 CORE Subminiature Microphones are just 3 mm (0.12 in) in size but pack the audio power of our larger, award-winning DPA mics. What they lack in size, they more than make up for in clarity, consistency and durability - three qualities that really matter. By shrinking CORE by DPA technology, we ensure you don't have to compromise on sound to focus on aesthetics.

• Amazing 3 mm CORE capsule technology

• Renowned DPA sound in a 60% smaller package

• Stainless steel, PVD-coated mic housing

• Modular adapter system fits most professional wireless systems

• Water and sweat resistant

• Made for theater, film, and television production

•

DIRECTIONAL PATTERN:

Omnidirectional

•

PRINCIPLE OF OPERATION:

Pressure

•

CARTRIDGE TYPE:

Pre-polarized condenser

•

FREQUENCY RANGE:

20 Hz - 20 kHz

•

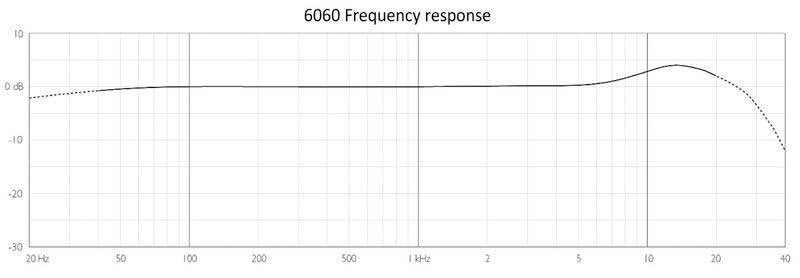

FREQUENCY RANGE, ±2 DB:

40 Hz - 20 kHz with 4 dB soft boost at 8 - 20 kHz

• Sensitivity, nominal, ±3 dB at 1 kHz: 20 mV/Pa; -34 dB re. 1 V/Pa

•

EQUIVALENT NOISE LEVEL, A-WEIGHTED:

yp. 24 dB(A) re. 20 Pa (max. 26 dB(A))

•

S/N RATIO (A-WEIGHTED), RE. 1 KHZ AT 1 PA (94 DB SPL):

Typ. 70 dB(A)

•

TOTAL HARMONIC DISTORTION (THD):

< 1% up to 126 dB SPL peak

•

DYNAMIC RANGE:

Typ. 102 dB

•

MAX. SPL, PEAK BEFORE CLIPPING:

134 dB

•

OUTPUT IMPEDANCE:

From MicroDot: 30 - 40 . From DAD6001-BC: 100

•

CABLE DRIVE CAPABILITY:

Up to 300 m (984 ft) with DAD6001-BC XLR adapter

•

POWER SUPPLY (FOR FULL PERFORMANCE):

Min. 5 V to max. 10 V through DPA adapter for wireless systems. With DAD6001-BC: 48 V phantom power ±4 V for full performance. Works from 12V

•

CONNECTOR:

TA54F

•

COLOR:

Black

•

WEIGHT:

8 g (0.29 oz) incl. Cable and MicroDot connector

•

MICROPHONE HEAD SIZE (H X W X D):

3.4 / 14.4 mm (0.13 / 0.57 in)

•

CAPSULE DIAMETER:

3 mm (0.12 in)

•

CABLE LENGTH:

1.8 m (5.9 ft)

•

POLARITY:

Positively increasing sound pressure produces positive going voltage on MicroDot pin

•

TEMPERATURE RANGE:

-40C to 45C (-40F to 113F)

•

RELATIVE HUMIDITY (RH):

Up to 90%
