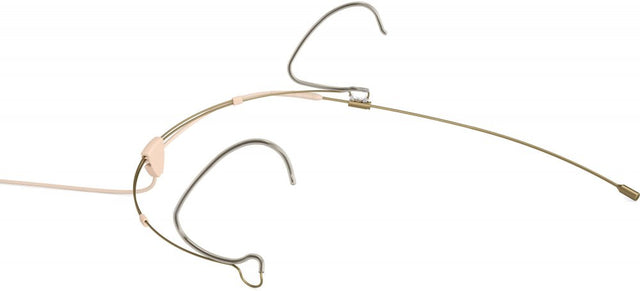

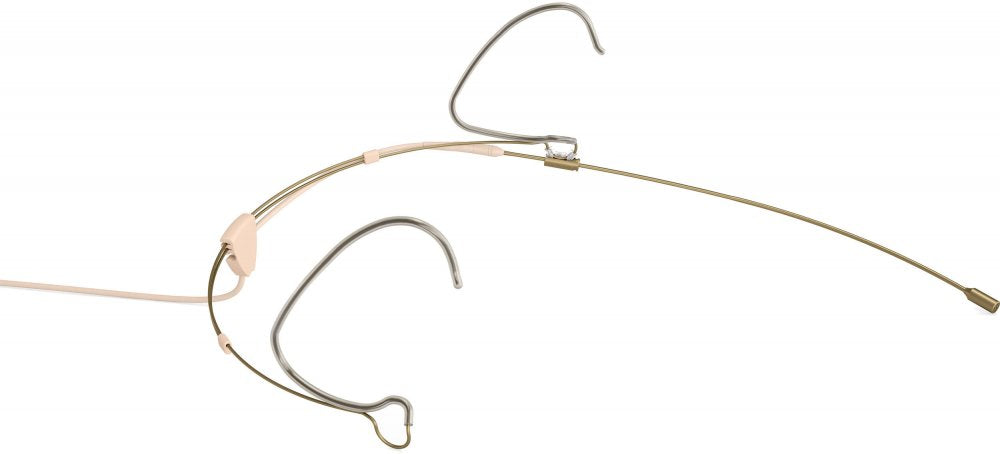

DPA 6066-OC-R-F34

The capsule of the d:fine™ CORE 6066 Subminiature Headset is just 3 mm (0.12 in) in diameter, but packs the audio power of larger, award-winning DPA mics. Despite its small size, it is abundant in clarity, consistency and durability - three qualities that truly matter. By shrinking our newly introduced CORE by DPA technology, we ensure you don't have to compromise on sound to focus on aesthetics.

Beyond this minimized size and maximized sound potential, these mics also sport a completely redesigned, lightweight, one-size-fits-all headset that attaches over the ears for maximum comfort. 3-point ear grips with spring mechanisms help grip below the ears and to the side of the head for added security. A 2-way adjustable boom system (length and height) with an anti-rotate mechanism makes this new headset very easy to fit. A new 90 cable management system safeguards the cable and directs it down the wearer's back, where it can't be seen.

Between the sound quality and the comfort, once you try it we're sure you'll never want to wear another headset mic solution.

• Amazing 3 mm CORE by DPA capsules technology

• Renowned DPA sound in a 60% smaller capsule

• One-size-fits-all, headset fits securely and comfortably

• 2-way adjustable, non-reflective boom with locking system

• Unique, comfortable 3-point gripping system above, below and behind the ear

• New 90 cable management constructed to guide the cable and minimize cable breaks

DIRECTIONAL PATTERN:

Omnidirectional

PRINCIPLE OF OPERATION:

Pressure

PRINCIPLE OF OPERATION:

Pre-polarized condenser

FREQUENCY RANGE:

20 Hz - 20 kHz

FREQUENCY RANGE, ±2 DB:

40 Hz - 20 kHz with 4 dB soft boost at 8 - 20 kHz

SENSITIVITY, NOMINAL, ±3 DB AT 1 KHZ:

6 mV/Pa; -44 dB re. 1 V/Pa

EQUIVALENT NOISE LEVEL, A-WEIGHTED:

Typ. 26 dB(A) re. 20 Pa (max. 28 dB(A))

S/N RATIO (A-WEIGHTED), RE. 1 KHZ AT 1 PA (94 DB SPL):

Typ. 68 dB(A)

TOTAL HARMONIC DISTORTION (THD):

< 1% up to 128 dB SPL peak

DYNAMIC RANGE:

Typ. 102 dB

MAX. SPL, PEAK BEFORE CLIPPING:

144 dB

OUTPUT IMPEDANCE FROM MICRODOT 30 - 40 . FROM DAD6001-BC:

100

CABLE DRIVE CAPABILITY:

Up to 300 m (984 ft) with DAD6001-BC XLR adapter

POWER SUPPLY (FOR FULL PERFORMANCE):

Min. 5 V to max. 10 V through DPA adapter for wireless systems. With DAD6001-BC: 48 V phantom power ±4 V for full performance. Works from 12V

CONNECTOR:

Mini-Jack

COLOR:

Beige

WEIGHT:

8 g (0.29 oz) incl. Cable and MicroDot connector

MICROPHONE HEAD SIZE (H X W X D):

3.4 / 14.4 mm (0.13 / 0.57 in)

CAPSULE DIAMETER:

3.4 / 14.4 mm (0.13 / 0.57 in)

CABLE LENGTH:

1.8 m (5.9 ft)

POLARITY:

Positively increasing sound pressure produces positive going voltage on MicroDot pin

TEMPERATURE RANGE:

-40C to 45C (-40F to 113F)

RELATIVE HUMIDITY (RH):

Up to 90%
