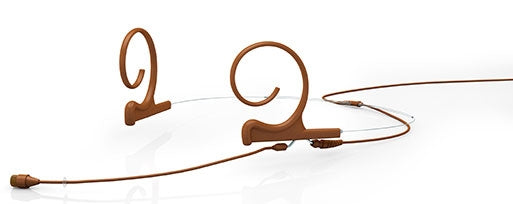

DPA FIO66C03-2

This condenser mic is easy and fast to adjust and it offers clean and transparent sound quality with lots of headroom.

Like all of the microphones in the range, the d:fine 66 Headset Microphone offers accurate, natural voice intelligibility and very high SPL capabilities. Users can both speak and sing into the mic with no hint of distortion. The microphone capsule is also optimized for low distortion as well as humidity resistance.

The d:fine 66 Omnidirectional Headset Microphone is available with single- or dual-ear mounts. Single-ear mount variants are the quickest to put on and often the best choice when miking needs to be fast and easy. Dual-ear mount variants sit more securely around the head and are ideal for active performance situations.

Available in black, beige and brown, the d:fine 66 has been ergonomically designed to fit comfortably and easily around the head. This mic adjusts to fit any ear size and head shape while at the same time it mounts securely and is hardly visible. By rotating the boom and the ear hook, the microphone can be easily used on either the left or right ear.

• Pristine audio quality

• Lightweight and flexible

• Easy mounting to both the left and right

• Minimal visual impact

• Resistant to humidity

• Modular adapter system fits most professional wireless systems

DIRECTIONAL CHARACTERISTICS:

Omnidirectional

PRINCIPLE OF OPERATION:

Pressure

CARTRIDGE TYPE:

Pre-polarized condenser

FREQUENCY RANGE:

20 Hz - 20 kHz

FREQUENCY RANGE, ± 2 DB:

Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz.

SENSITIVITY, NOMINAL, ± 3 DB AT 1 KHZ:

6 mV/Pa; -44 dB re. 1 V/Pa

EQUIVALENT NOISE LEVEL, A-WEIGHTED:

Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))

EQUIVALENT NOISE LEVEL, ITU-R BS.468-4:

Typ. 38 dB (max. 40 dB)

S/N RATIO (A-WEIGHTED), RE. 1 KHZ AT 1 PA (94 DB SPL):

Typ. 68 dB(A)

DYNAMIC RANGE:

Typ. 97 dB

MAX. SPL, PEAK BEFORE CLIPPING:

144 dB

OUTPUT IMPEDANCE:

From MicroDot: 30 - 40 . From DAD6001: 100 .

CABLE DRIVE CAPABILITY:

Up to 300 m (984 ft) with DAD6001-BC XLR adapter

OUTPUT BALANCE PRINCIPLE:

Signal balanced with DAD6001-BC XLR adapter

COMMON MODE REJECTION RATIO (CMRR):

> 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR adapter

CURRENT CONSUMPTION:

Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR adapter

CONNECTOR:

3-pin Lemo

COLOR:

Brown

MICROPHONE DIAMETER:

5.4 mm (0.2 in)

MICROPHONE LENGTH:

12.7 mm (0.5 in)

POLARITY:

Positively increasing sound pressure produces positive-going voltage at MicroDot pin (and pin 2 on DAD6001 XLR adapter)

CABLE LENGTH:

1.25 m (4.1 ft)

CABLE COLOR:

Brown

CABLE DIAMETER:

1.6 mm (0.06 in)

TEMPERATURE RANGE:

-40 to 45C (-40 to 113F)

RELATIVE HUMIDITY (RH):

Up to 90%
