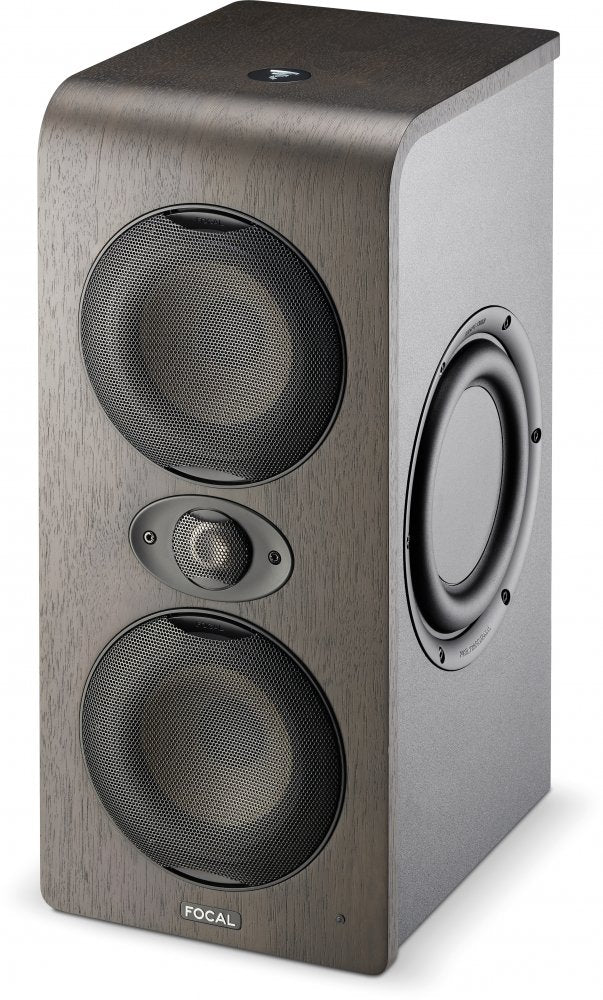

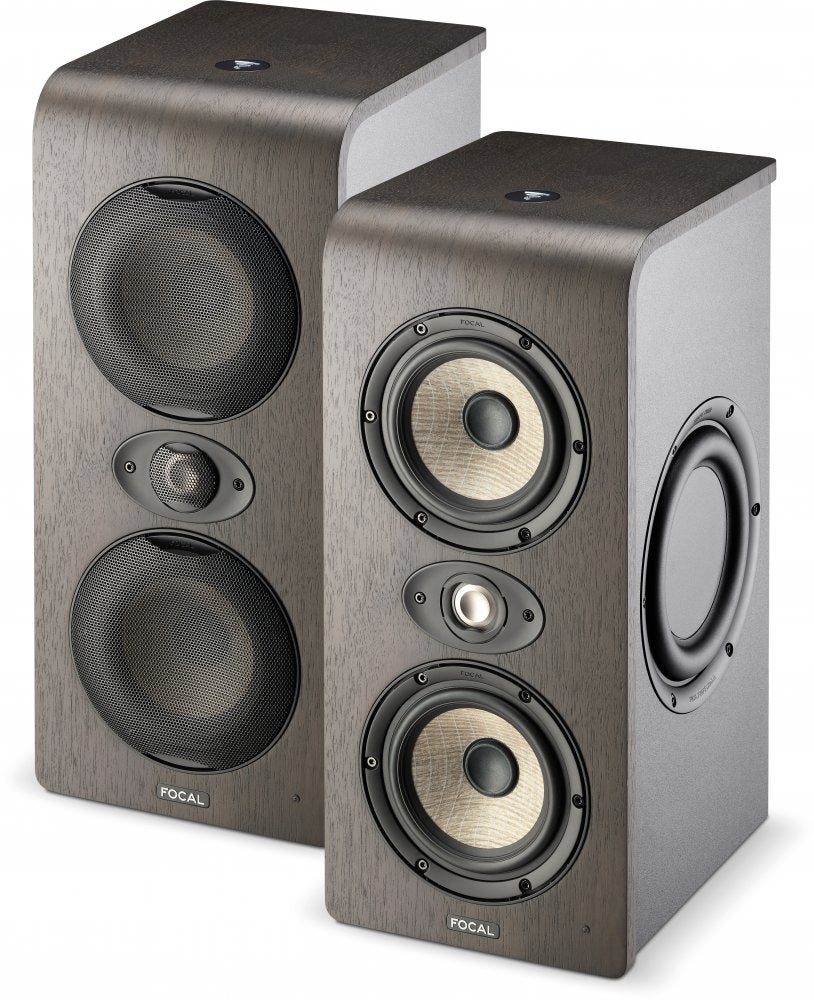

Focal Shape Twin

Shape Twin is the flagship of the Shape line. This monitoring loudspeaker features excellent readability across the entire audio spectrum, combined with extended low-frequency response and a high SPL (110.5 dB) for its size. Equipped with two 5" (13 cm) Flax cone woofers reproducing the 40 Hz- 2.5 kHz register, it shines in terms of perShapence and design.

REFERENCE MONITOR Flax membranes on the woofers, an aluminum-magnesium "M" profile tweeter, three Class AB amplifiers, two 21 cm passive radiators: Shape Twin is a work tool with a vast and precise stereophonic image. A must-have for any recording studio!

COMPACT DESIGN Its compactness makes it easy to integrate, even in the smallest of spaces. Its 2.5-way d'Appolito design offers a decisive advantage in terms of bass and low-midrange register control, always critical in a small space. This monitor expresses its full potential from a listening distance of 1 m.

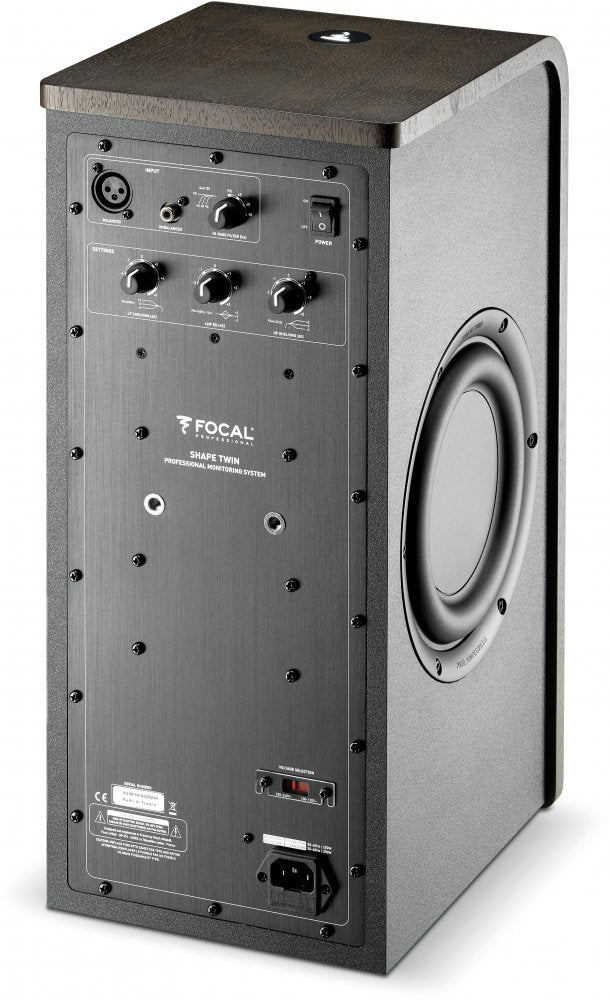

FUNCTIONAL XLR and RCA inputs, adjustable bass and treble levels, adaptable 160 Hz crossover, disengageable high-pass crossover are just some of the functions and settings available.

STYLE AND DISCRETION Alongside an MDF cabinet body partly covered with real walnut veneer, Shape Twin is very stylish. Compact, it is as discreet as it is flexible in its positioning, thanks to the mounting inserts.

• Tweeter with very low directivity for a flexible sweet spot

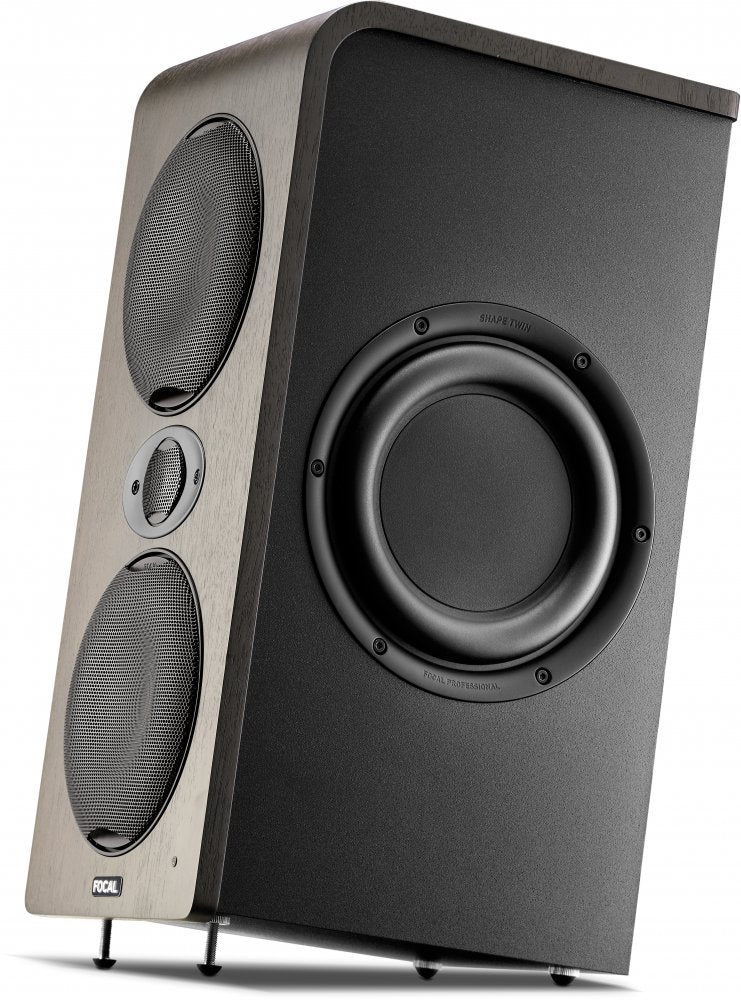

• Designed without a port (double passive radiator) allowing it to be placed near a wall

• 2.5 channels to provide optimal control of bass and low mid-range registers

• Numerous settings for optimal integration

• Accurate control, even in the very high frequencies

• Flax sandwich cone: controlled and articulated bass, natural and detailed lower mid-range and upper

mid-range registers

• Fastening mechanisms for mounting to the ceiling or a wall (fastening accessories not supplied)

SOUND - ACOUSTICS:

Product type: 2.5 -way monitor

Loudspeakers:

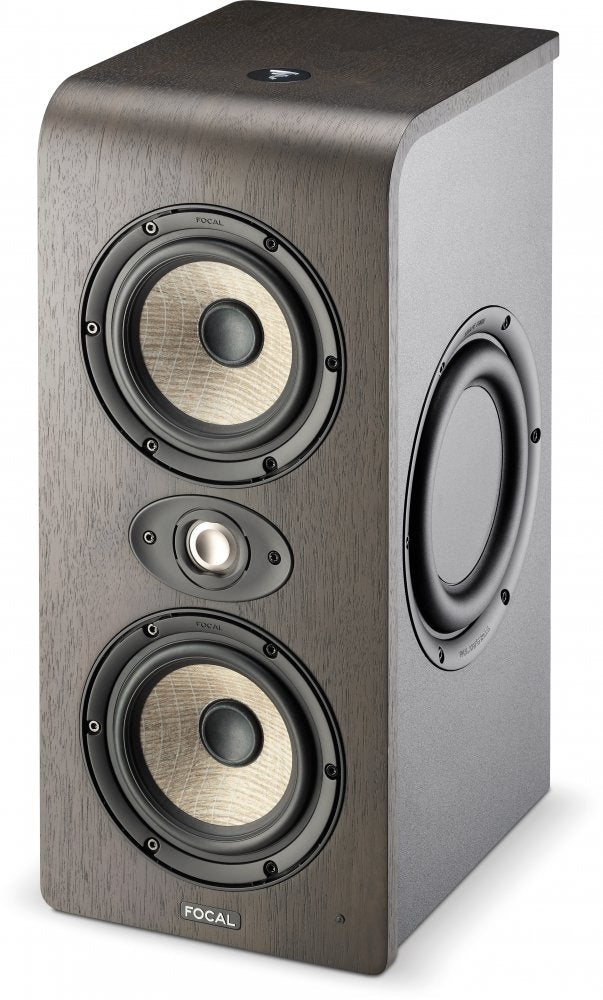

• Woofer : 2 x 5" Flax membrane

• Tweeter : 1" Aluminium-Magnisium M shaped dome

Frequency response (+/- 3dB): 40 Hz - 35 kHz

Maximum SPL (peak@1m): 110 dB

SOUND - ELECTRONICS:

Inputs:

• XLR: symmetrical 10 kOhms

• RCA: asymmetrical 10 kOhms with compensanted sensitivity

High frequency amplifier: 50 W, class AB

Mid-range and low frequency amplifier: 2 x 80 W, class AB

Indicators and controls: • HPF, LF Shelv, LMF EQ, HF Shelv
