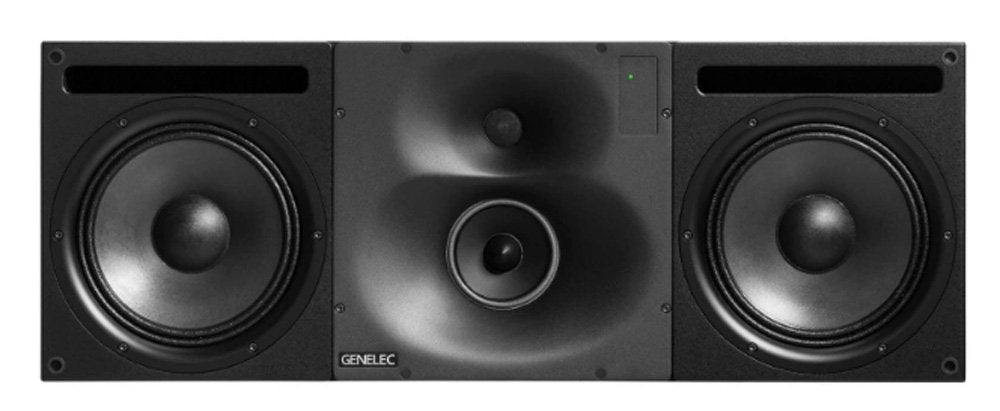

Genelec 1238ACPM-HD

Shaped by decades of engineering expertise and armed with the power of Smart Active Monitoring technology, the 1238AC is a centre channel monitor designed for the most demanding applications.

PERFECT FOR MULTI-CHANNEL:

As a centre-channel companion to the 1238A, the three-way 1238AC is perfect for multi-channel applications that require extremely uncoloured and precise on and off axis response, even at high SPLs and longer listening distances. With a choice of horizontal or vertical orientations, the controlled directivity of the 1238AC results in a wide, very stable sweet spot " so users can move freely around the console and still make accurate, reliable and informed mix decisions.

CONFIGURE, CALIBRATE AND CONTROL:

As part of the growing Smart Active Monitoring family, the 1238AC integrates closely with our GLM software via which it can be configured and calibrated for your listening environment, compensating for detrimental room influences to create a truly optimised monitoring solution. Since producing multi-channel content that translates well to other rooms and systems relies on a good room and an extremely well-aligned monitoring system, the 1238AC is the natural choice for discerning professionals in high-end music production, post production and broadcast.

SPL:

121 dB

AMPLIFIER POWER:

500 W Bass (Class D) + 250 W Midrange (Class D) + 200 W Treble (Class AB)

FREQUENCY RESPONSE:

30 Hz - 22 kHz ("-6 dB")

ACCURACY OF FREQUENCY RESPONSE:

± 2 dB (35 Hz - 20 kHz)

DRIVER DIMENSIONS:

2 x ⌀ 250 mm Bass + ⌀ 125 mm Midrange + ⌀ 25 mm Treble (view in inches)

DIMENSIONS:

H 350 x W 950 x D 453 mm, (view in inches)

WEIGHT:

60 kg / 132.3 lb

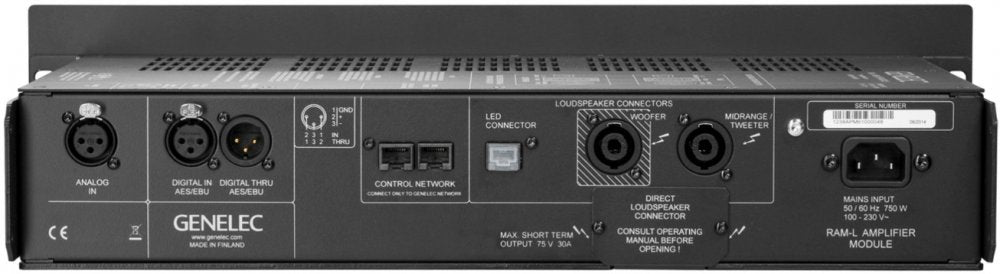

CONNECTIONS:

1 x XLR Analog Input

1 x XLR AES/EBU Input

1 x XLR AES/EBU Output

2 x RJ45 Control

PACKAGE CONTAINS:

1 x 1238AC main monitor

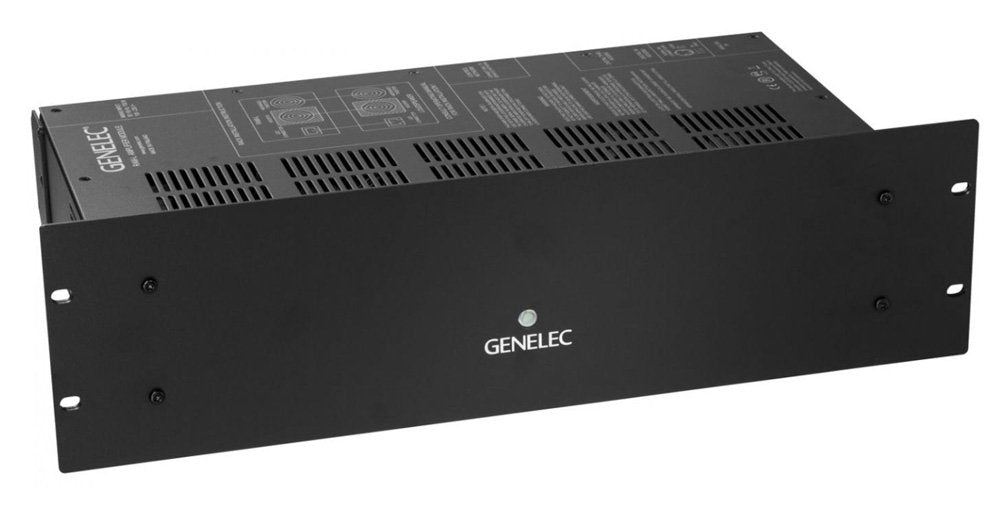

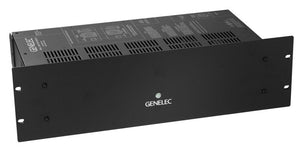

1 x individually calibrated RAM-L amplifier unit

1 x mains cable 1,8 m

1 x RJ45 cable 5 m

1 x RJ45 cable 10 m

2 x 4-pole speakon cable 10 m

1 x operating manual

GLM CALIBRATION:

Requires free GLM software and either our 9320A SAM Reference Controller or GLM Calibration Kit device (both sold separately) for calibration.
