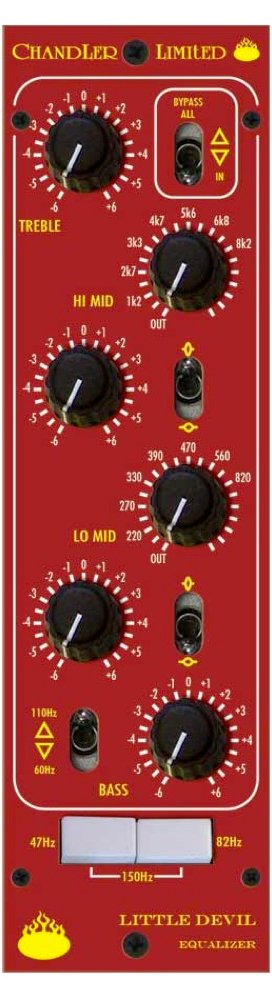

Chandler Little Devil Equalizer

The Little Devil EQ is a small package with a huge sound. It is a Chandlerized British console sound in a 500 package. It will take your lunchbox or rack system to the next level!

This Devil has all discrete circuits with custom transformers, an inductor-based EQ that modern gyrator circuits can't touch, and a classic Baxendall tone control that is simply huge sounding! These units are all handmade using through-hole components and handwiring. We don't use surface mount components which, in our opinion, lowers the quality. Chandler's units are extremely high-quality made the way your favorite vintage units were made to preserve that special sound.

Please note that all Devils feature increased compatibility! No power issues here!

All Chandler 500 series units have now been tested and proven to have no power issues in the following racks: API 500V 10-slot with L200 PSU; API 500-6B Lunchbox; API 500-6B HC "new version" Lunchbox; BAE 11-slot with power one supply; BAE 6-slot portable with power one supply; BAE 6-slot with Avedis designed supply; A-Designs 2-slot; Purple Sweet 10; and Empirical Labs 2-slot.

Little Devil EQs and Little Devil Compressors have been upgraded to eliminate the power conflict experienced with some 3rd party racks and lunchboxes. The upgrade has been tested in the racks listed above. Any Little Devil EQ or Little Devil Compressor with compatibility issues can be returned to Chandler Limited for a free upgrade. ( parts & labor )

• All controls are marked +/- 1 to 6 in the playful DEVIL spirit of the concept.

• Treble and bass shelf +/-18db. Treble is set to 12k while Bass is selectable 50 and 110hz.

• HI and LO Mid +/-18db with hi and lo Q switching. Inductor based english style with 7 selections per band.

• Hi Mid - 8k2, 6k8, 5k6, 4k7, 3k3, 2k7, 1k2

• Lo Mid - 820, 560, 470, 390, 330, 270, 220

• Three position filter. 47, 82, and 150hz.

• Hardwire bypass

• I/O: 500 Series Enclosure

FORMAT:

500 Series

CHANNELS:

Mono

CIRCUIT:

Discrete, Inductor, Transformer Balanced

FREQUENCIES:

• TREBLE and BASS shelf +/-18db. Treble is set to 12k while Bass is selectable 50 and 110hz

• HI and LO MID +/-18db with HI and LO "Q" switching on each band

• HI MID - 8k2, 6k8, 5k6, 4k7, 3k3, 2k7, 1k2

• LO MID - 820, 560 470, 390, 330, 270, 220

• THREE POSITION FILTER - 47, 82, and 150hz

BYPASS:

Hardwire

I/O:

500 Series Enclosure
