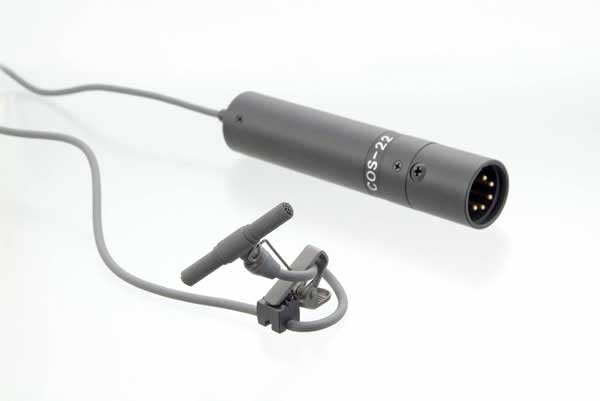

Sanken COS-22

The Sanken COS-22 is the world's first 2ch lavalier microphone. In the tradition of the popular Sanken COS-11 lavalier series, the ultra miniature COS-22 measures only 31.6mm (1.25") in length but boasts a full frequency response up to 20,000 Hz. The two-channel, dual-omnidirectional COS-22 is designed for a variety of applications, including high quality unobtrusive area miking, stereo recording of music and environmental ambience, redundant capsule live broadcast (e.g. news anchors), and boundary-style miking for film and television. In addition, the COS-22 can be used as a noise cancellation directional microphone pair by reversing the phase of one channel before summing the two outputs.

• Unique Diaphragm Design

• Increased immunity to airborne electrical interference

• Improved strain relief

• 20HZ-20kHz with 95dB dynamic range

• Built in 3 layer water repellent windscreen

• Surface noise isolation

• 2.1mm rugged cabling which is resistant to sweat, stays soft and pliable even after extended use

• Standard XLR5M connector

• Included accessories: C-22 holder clip, instruction manual, warranty card, vinyl case

Directivity: Omni directional

Transducer: Self-polarised condenser

Frequency range: 50Hz - 20kHz

Sensitivity (nominal at 1kHz): 17.8mV/Pa (-35dB,0dB=1V/Pa)

Equivalent noise level (A-weighted): 28dB-A

Max SPL (1% THD): 137dB SPL

Output impedance at 1KHz: 180 ohms

Powering: +48±4V phantom X 2ch

Current consumption: less than 2.2mA / ch

Weight: 20g (including cable), 70g (48V I/F)

Dimensions: 31.6mm X 4.0mm (diameter)

Surface finish: baked painting/gray

Connector: XLR-5M
