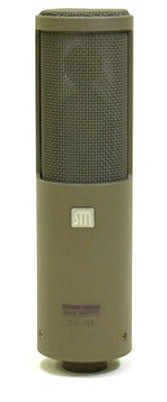

Sanken CU-51

It is ideal for vocals but in reality it can capture the essence of any instrument with a clarity and transparency that has to be heard to be believed. The sound is consistent throughout the entire cardioid pattern. Over 90 years of technological innovation and artist feedback have gone into the design of this unique microphone. No other manufacturer includes the features of the CU-51. What you hear in the studio is what you capture in the control room.

Provides ideal polar pattern at wide frequency range. Frequency characteristic curve moves in parallel even removing microphone from front axis direction.

PPS(Poly Phenylene Sulfide) which cannot be easily influenced by humidity and temperature change is used as a diaphragm of the capsule, resulted in highly reliable microphone.

• Perfect for vocals and acoustic instruments

• Dual phase coherent capsules - low and high

• PPS (Polyphenylene) membranes are immune to the effects of humidity and temperature change

• Uniform response in both on-axis and off-axis positions

• Truly flat frequency response even at 90

• degrees (40Hz to 20kHz)

• Low proximity effect

• Exacting cardiod pattern ideal for vocals and a wide range of musical applications

• Consistently delivers a high transient, natural and uncolored sound with vivid sonic imagery

• Directivity: Cardioid

• Transducer: 2 way capsule DC biased condenser

• Frequency range: 20Hz - 20kHz

• Sensitivity(nominal at 1kHz): -30dB (31.6mV , 0dB=1V/Pa)

• Equivalent noise level (A-weighted): 4dB-A

• Max SPL (1% THD): 138dB SPL

• Output impedance at 1KHz: 150 ohms

• Powering: +48±4V phantom

• Current consumption: 4mA

• Included Accessories: Vinyl Case

• Weight: 430g

• Dimensions: 157mm X 41.5mm (diameter)

• Surface finish: matte brown paint

• Connector: XLR-3-12(M)

INCLUDED ACCESSORIES:

Vinyl Case
