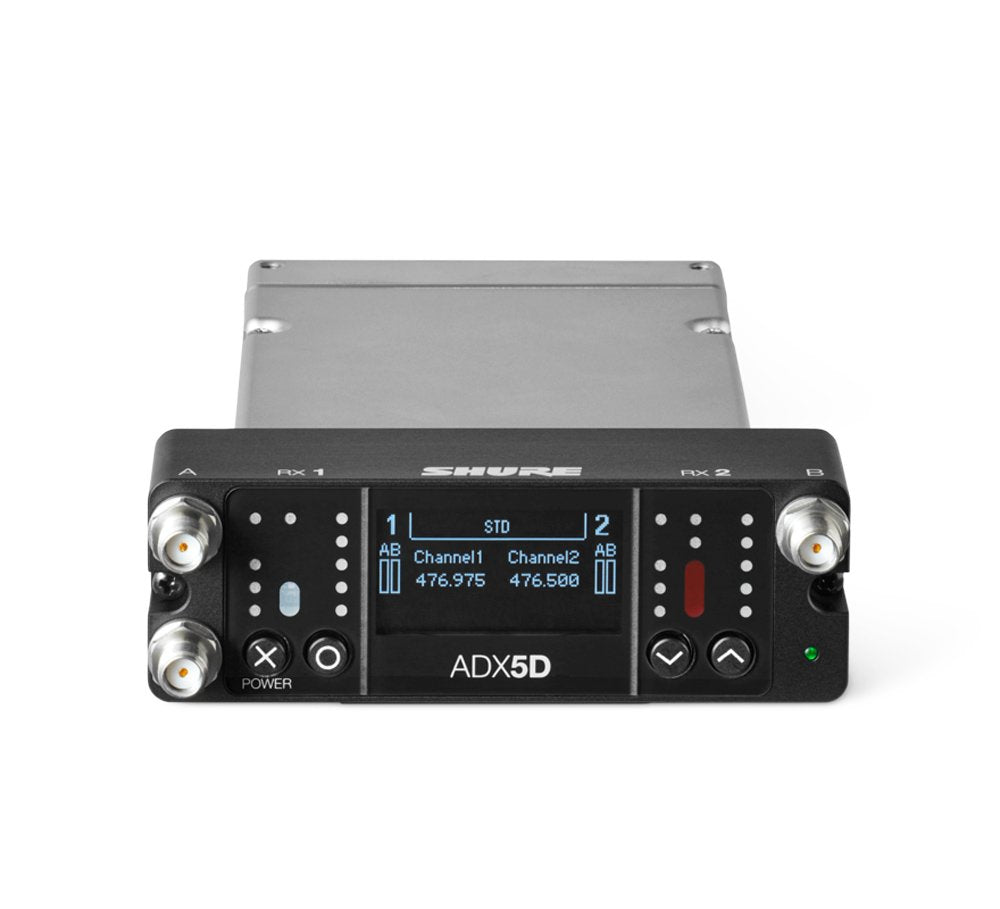

Shure ADX5D-A (Band A: 470-636 MHz)

The dual-channel ADX5D portable wireless receiver sets a new standard in spectral efficiency. Groundbreaking performance features include wide tuning, low latency, and High Density (HD) mode, ensuring solid performance in the most challenging RF environment. As an Axient Digital ADX Series wireless receiver, the ADX5D features ShowLink Direct Mode that allows remote control of Axient Digital transmitters without the need of external equipment.* Robust RF. Impeccable audio. Axient Digital quality and performance. All in a portable, slot-in design. Premium portable wireless.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

* Country-Specific Functionality Restrictions

• Dual-channel slot-in form wireless receiver

• Impeccable audio quality

• Wide tuning range up to 184 MHz (region dependent)

• High spectral efficiency due to advanced digital modulation scheme offers more wireless channels in available RF space

• High Density (HD) mode provides even higher spectral efficiency (application dependent)

• True digital diversity reception per channel for drop-out resistance and excellent range

• Networked control with Wireless Workbench software and ShurePlus™ Channels app

• 5-segment Channel Quality meters displays per-channel RF link quality

• ADX series receiver with ShowLink Direct Mode allows remote control of Axient Digital transmitters without the need of external equipment*

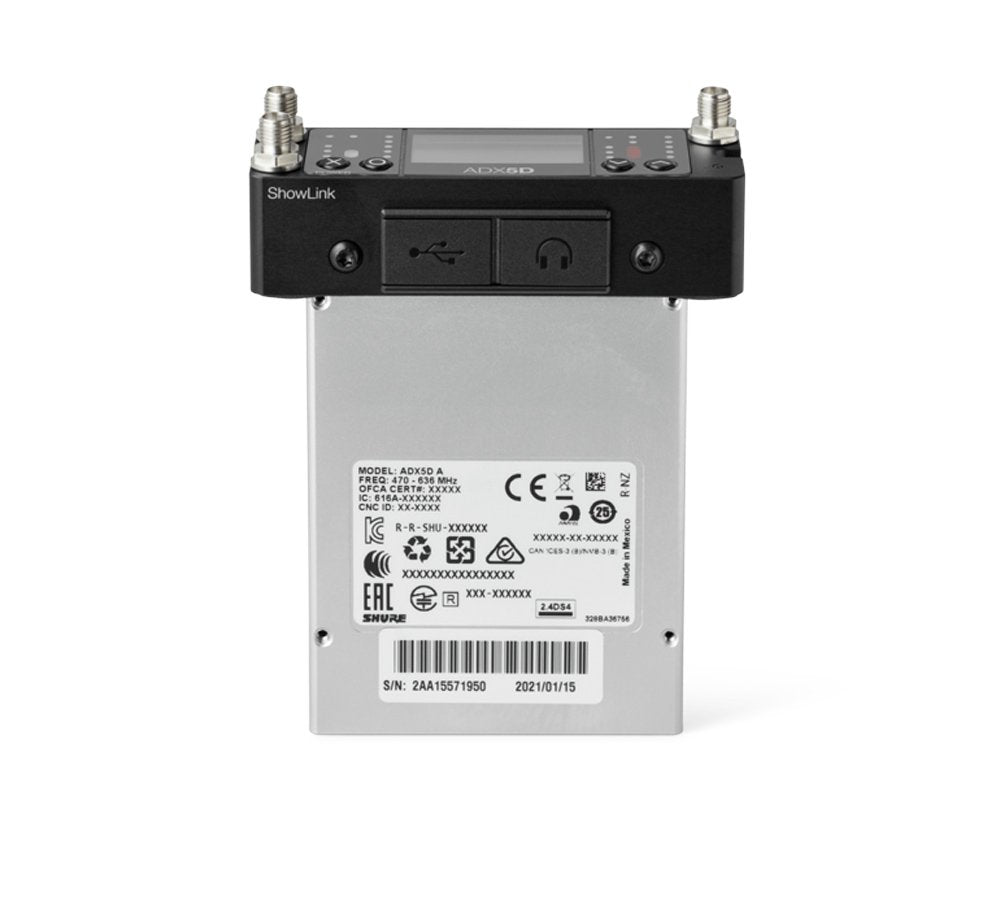

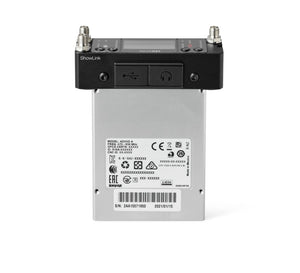

• Aux 3.5mm audio output provide connection to headphones or to a balanced line level input

• Accessory Mount with cold shoe adapter (sold separately)

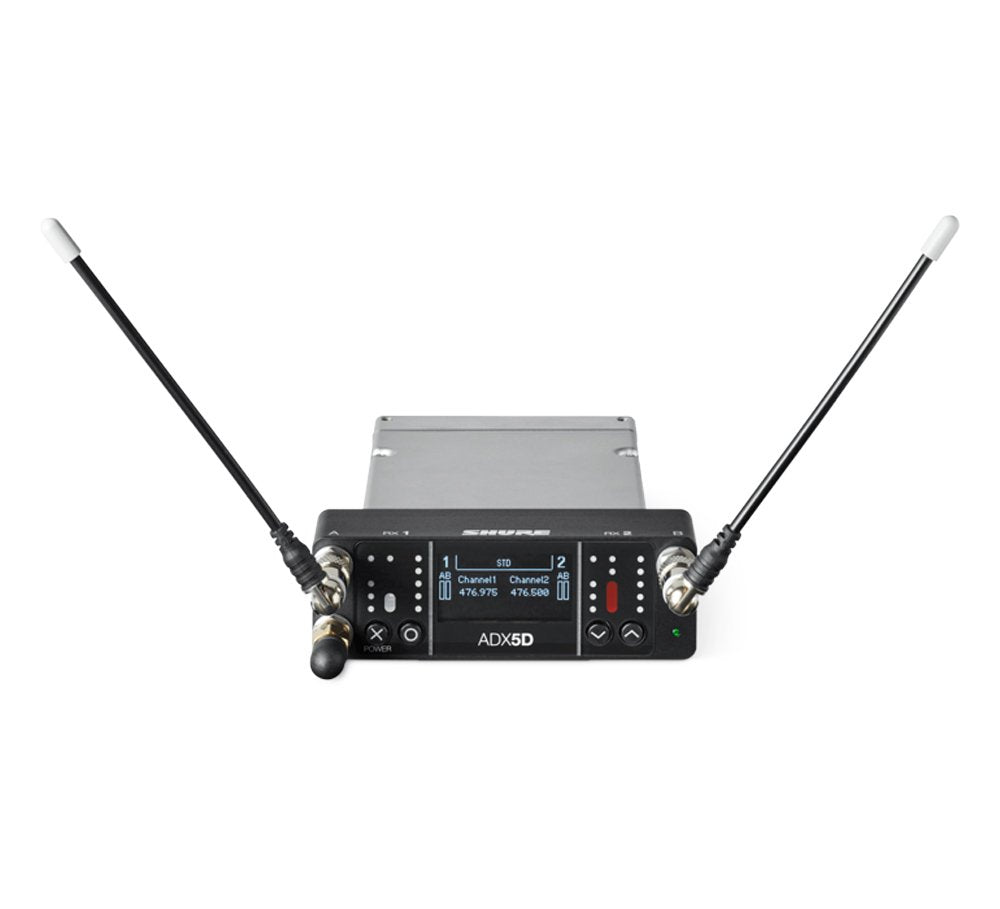

• Removable antennas with standard SMA connectors

• High-resolution OLED display

• USB-C port for firmware upgrades

• Streamline user interface

• Low latency, down to 2 milliseconds

INCLUDED:

1 - ADX5D

1 - USB-A to USB-C cable

2 - UHF Antenna

1 - Zigbee Antenna
