DPA ST4006C

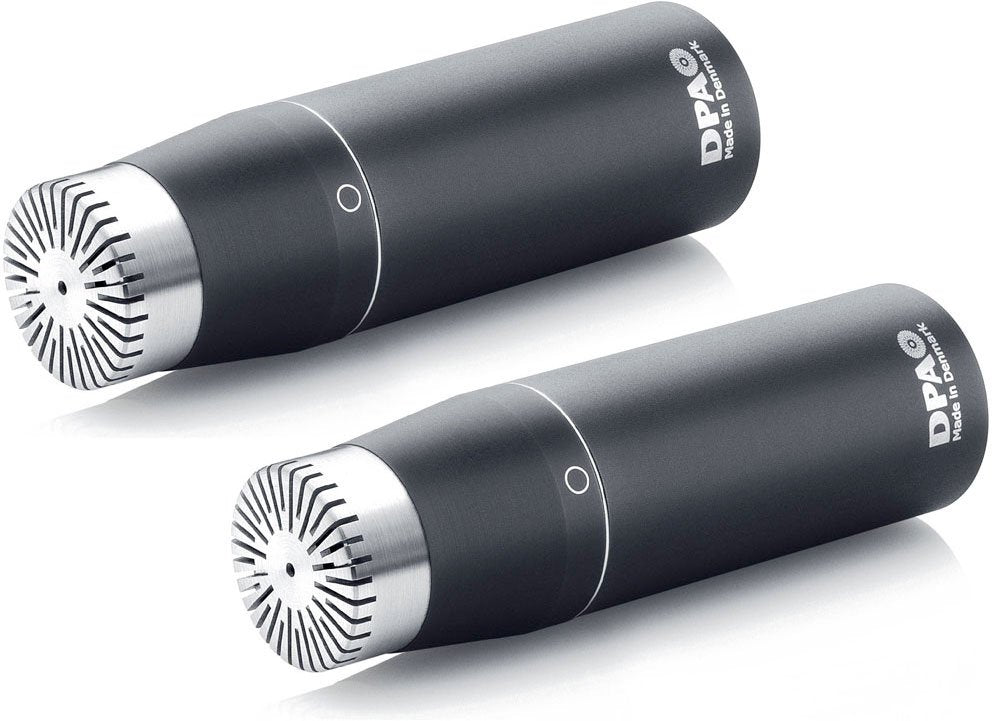

Even though the standard tolerances on our d:dicate™ microphones are extremely low, a stereo match is even closer. These specially selected d:dicate™ 4006C microphones are matched within ±0.5 dB on both frequency response and sensitivity.

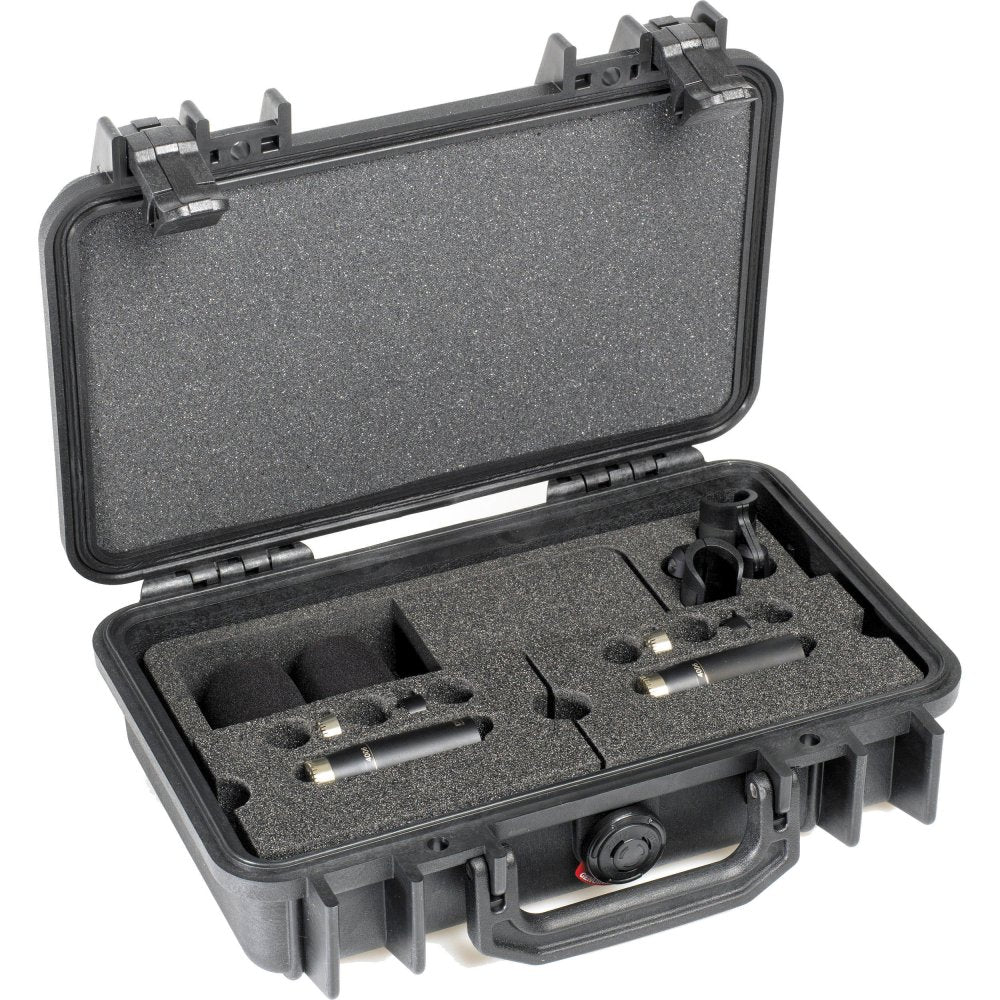

The pair comes in a heavy-duty Peli™ Case for safe transportation and easy access to the microphones and accessories. The mic capsule The MMC4006 Omnidirectional Microphone Capsule offers total transparency in any recording situation. It picks up incredible detail and depth of sound. The definition of its high-frequency characteristics across a wide range of instruments is impressive. It offers natural sound, high sensitivity, low noise-floor and extremely linear frequency response from 10 to 20 kHz (±2 dB).

A selection of accessories is available, including acoustic pressure equalizers, a nose cone and interchangeable protection grids. These accessories can acoustically transform the mic. By changing grids, it is possible to gain several unique frequency responses and directional characteristics from the mic. Furthermore, these accessories will not produce any phase shift, noise or distortion that would otherwise be introduced by an electrical filter. A truly flexible range The d:dicate™ 4006C Omnidirectional Microphone, Compact is part of the flexible d:dicate™ Microphones Series. It combines the MMC4006 Omnidirectional Capsule with the MMP-C compact preamplifier. This combination offers a subtle character alteration with a bit more "body" to the low end than the d:dicate™ 4006A Omnidirectional Microphone.

Another option, for the true audiophile, is the d:dicate™ 4006A Omnidirectional Microphone. It offers low distortion and totally accurate and faithful sound.

At any time, and with no tools needed, it is possible to transform the d:dicate™ 4006C Omnidirectional Microphone, Compact into a new configuration. You can combine it with another d:dicate™ or d:facto™ Microphone Capsule or Preamplifier.

The d:dicate™ 4006C Omnidirectional Microphone, Compact is also available individually.

• Carefully matched microphones

• Natural sound

• High sensitivity

• Low noise-floor

• Extremely linear frequency

• Sturdy Peli™ Case for transportation and protection

• Directional pattern: Omnidirectional

• Principle of operation: Pressure

• Cartridge type: Pre-polarized condenser

• Frequency range: 10 Hz - 20 kHz

• Frequency range, ± 2 dB: 20 Hz - 20 kHz

• Sensitivity, nominal, ± 2 dB at 250 Hz: 40 mV/Pa; -28 dB re. 1 V/Pa

• Equivalent noise level, A-weighted: Typ. 15 dB(A) re. 20 µPa (max. 17 dB(A))

• Equivalent noise level, ITU-R BS.468-4: Typ. 27 dB (max. 29 dB)

• S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 79 dB(A)

• Total Harmonic Distortion (THD): < 1 % up to 134 dB SPL peak

• Dynamic range: Typ. 119 dB

• Max. SPL, peak before clipping: 140 dB

• Output impedance: < 200 ohm

• Minimum load impedance: 2 kohm

• Cable drive capability: 100 m (328 ft)

• Output balance principle: Impedance balancing with Active Drive

• Common Mode Rejection Ratio (CMRR): > 50 dB

• Power supply (for full specifications): 48 V Phantom power (± 4 V)

• Current consumption: 2.8 mA

• Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase

• Color: Matte black

• Weight: 63 g (2.2 oz)

• Microphone diameter: 16 - 19 mm (0.6 - 0.75 in)

• Capsule diameter: 16 mm (0.6 in)

• Microphone length: 64 mm (2.5 in)

• Output voltage, RMS: > 4 V

• Polarity: +V at pin 2 for positive sound pressure

• Temperature range: -40 C to 45 C (-40 F to 113 F)

• Relative Humidity (RH): Up to 90%

• Matching tolerance: ± 0.5 dB

• Phase deviation for kit: < 5
