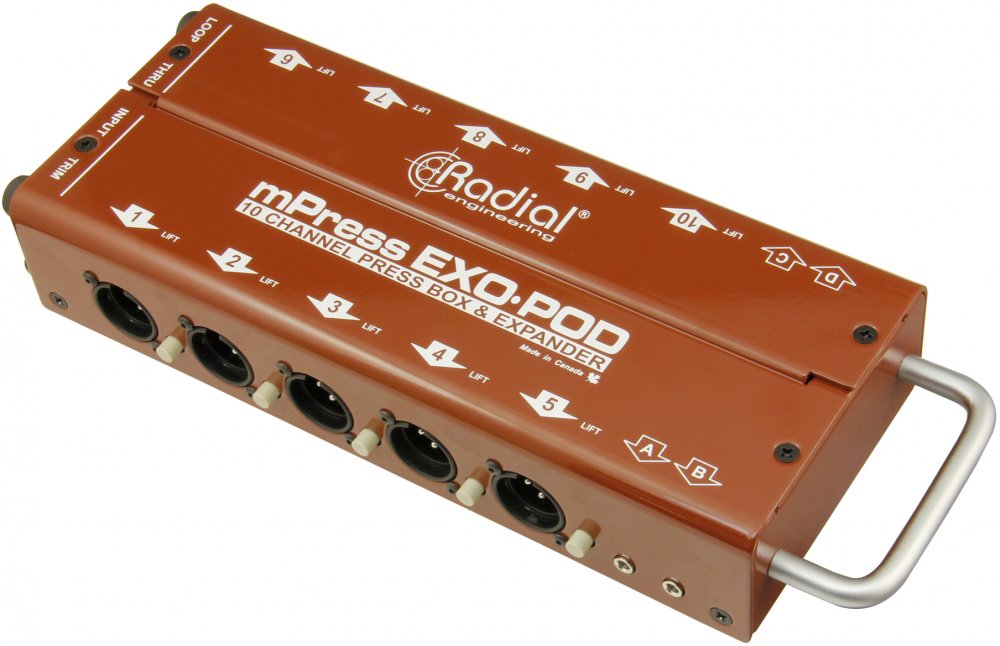

Radial Engineering Exo-Pod

The Radial Exo-Pod is a passive broadcast splitter that can take the balanced line output from a mixing console and distribute the signal to 14 hand-held recorders, video cameras.

It can also be used in conjunction with the Radial mPress master press box to create a modular solution for hundreds of individual press feeds.

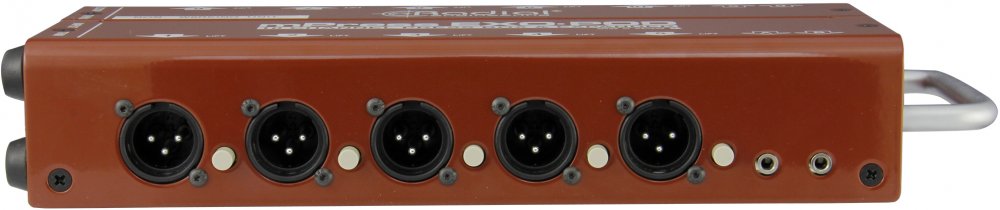

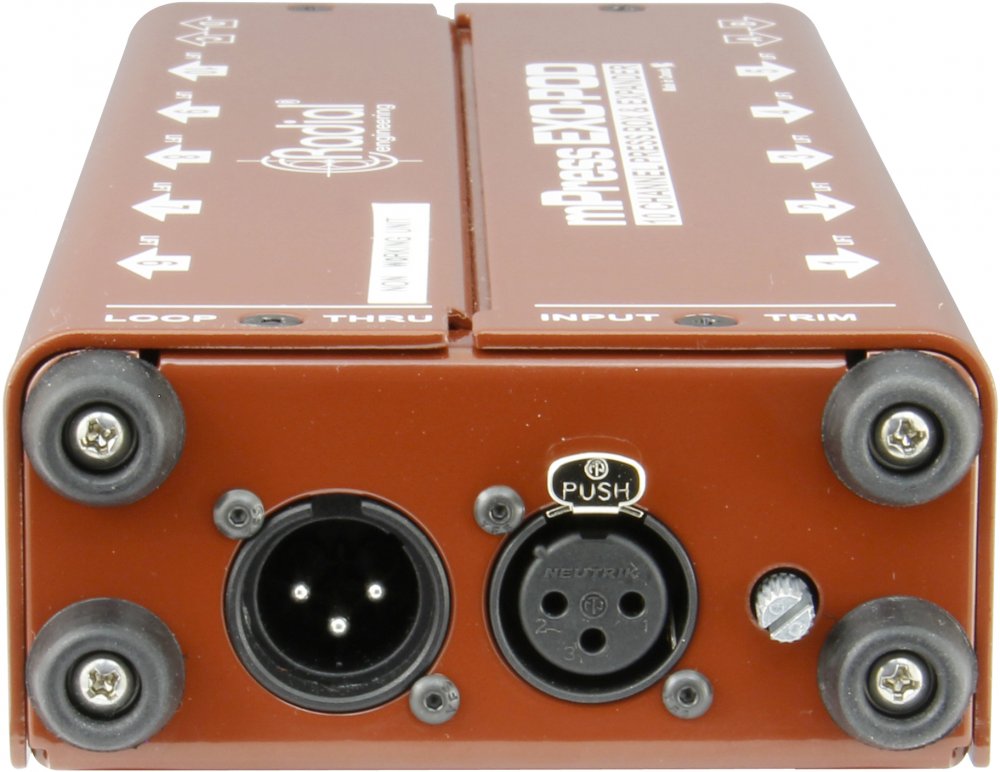

The compact floor-box begins with 14-gauge steel construction for exceptional durability against the rigours of the road. The steel casing also provides excellent shielding against stray magnetic fields from stage lighting dimmers, power transformers and electrical cables. This is augmented with protective bumpers to protect the connectors and trim control switch from damage plus a sturdy steel handle for easy manipulation. Connecting to and from the Exo-Pod begins with a balanced XLR input, ten XLR balanced outputs and four mini 3.5mm TRS connectors for video cameras, hand-held recorders, tablets or other media systems. A variable input trim allows the broadcast technician to reduce the output level locally for convenience. All of the outputs are transformer isolated to eliminate hum and buzz that is often encountered due to ground loops. The XLR outputs are supplemented with individual ground lift switches to further abate noise.

As the Exo-Pod is completely passive, no power is required. You simply connect your line level source and feed as many as 14 mic inputs at once with excellent audio performance, high signal-to-noise and plenty of headroom.

The Radial Exo-Pod is a simple solution that goes to work every day!

• Passive design with 14 transformer isolated outputs

• Set & forget variable output trim control

• Balanced line level XLR input with expandable input

• Extra durable heavy 14-gauge steel construction

SPECIFICATIONS:

Audio circuit type: Passive

Frequency response: <20Hz to >20kHz ±1dB

Total harmonic distortion: 0.001%

Dynamic range: >136dB / >100dB

Input impedance: 350

Common mode rejection ratio: 63dB

Gain - input to XLR output: -3.5dB / -18dBu

Gain - input to mini out: -1.3db / -20dB

Clip level - input: >+26dBu

Output impedance - XLR outs: 1000

Output impedance - mini outs: 4600

Equivalent input noise: -108dBu/-84dBu

Noise floor - XLR out: -111dBu

Noise floor - mini out: -86dBu

Intermodulation distortion: 0.006%

Phase deviation: -5/+25

FEATURES:

Controls: Input level trim

Switches: Ground lifts

GENERAL:

Construction: 14-gauge steel chassis & outer shell

Finish: Durable powder coat

Size:L: 11.75"" x W:5" H:2.25" (298.45mm x 127mm x 57.15mm)

Weight: 3.6lb

Shipping size: L:13.37" x W:5.5" H:3.25" (571.5mm x 260.35mm x 114.3mm)

Shipping weight: 4lb
