RØDE TF-5 MP

According to RØDE, the TF-5 represents a new standard in small diaphragm condenser microphones, and it is unrivaled in terms of airiness and clarity, with a warmth that makes it uniquely versatile.

RØDE goes onto say that the diaphragm condenser microphone has precision sonic matching and the beautiful tone of the TF-5 makes it perfect for recording detailed and natural-sounding performances when used as a stereo pair, or for capturing the nuances of a soloist when used as a spot mic.

The precision-engineered capsule of each microphone employs a cardioid polar pattern to enhance directionality and reduce ambiance. By utilizing JFET active electronics, the microphones are able to handle high SPLs up to 120 dB while delivering a wide, flat frequency response with low noise.

Being 48V phantom powered, the mics aren't subject to performance degradation caused by drained batteries.

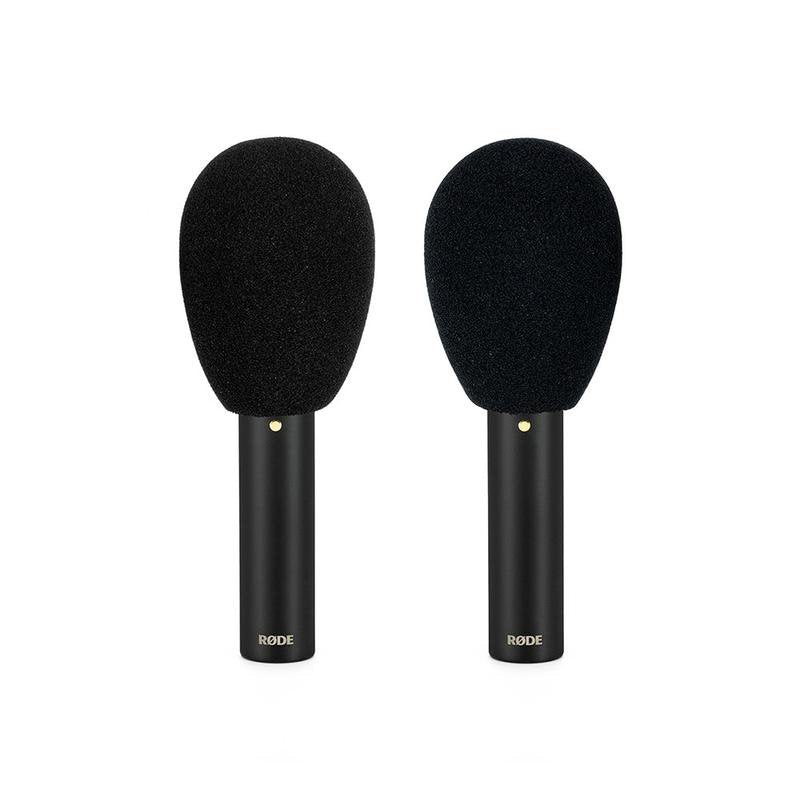

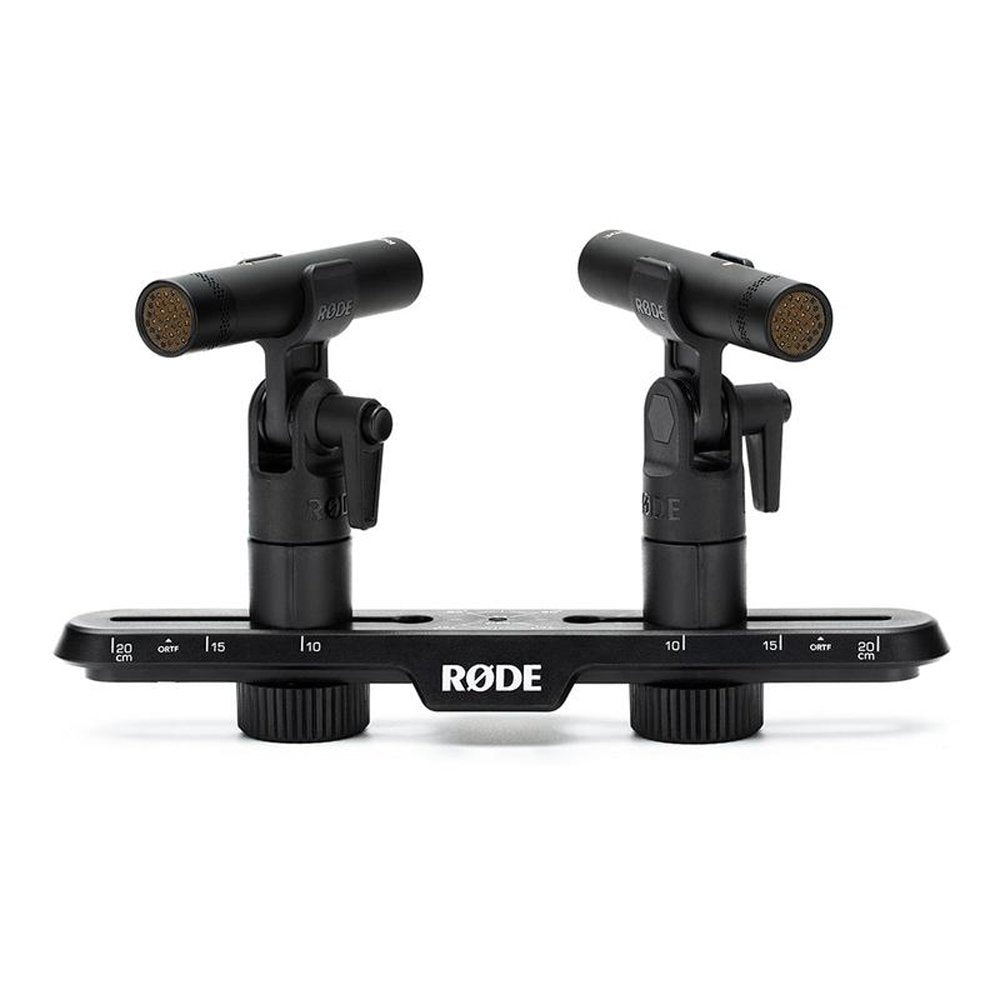

You can attach both TF-5 mics to a single mic stand via the supplied mic clips and SB20 stereo bar, which features angle/measurement indicators for ORTF and X/Y configurations. The compact, lightweight mic housings ensure a balanced setup with a variety of mic stands from compact to heavy duty. Windscreens are included to reduce noise from wind or HVAC systems.

• Matched Pair for Accurate Stereo Imaging

• Optimized for Sonic Transparency

• Cardioid Polar Pattern Reduces Ambience

• Precision Small-Diaphragm Capsule Design

• Wide, Flat Frequency Response

• Low Noise, High SPL Handling

• 48V Phantom Powered

• Compact, Lightweight Housing

• Includes SB20 Stereo Bar for Easy Setup

• Includes Mic Clips and Windscreens

ACOUSTIC PRINCIPLE:

Externally biased condenser

ACTIVE ELECTRONICS:

JFET impedance converter with bipolar output buffer

POLAR PATTERN:

Cardioid

FREQUENCY RANGE:

20Hz - 20kHz

FREQUENCY RESPONSE:

30 Hz - 20 kHz ±3dB // 20 Hz - 20 kHz ±4dB

OUTPUT IMPEDANCE:

63

SIGNAL TO NOISE RATIO:

80dB

EQUIVALENT NOISE:

14 dB SPL (A-weighted, as per IEC651)

INPUT SPL @ 1% THD:

120 dB SPL (1kHz @ 1% THD, 600 load)

SENSITIVITY:

-29 dB re.1 Volt/Pascal or better (35 mV @ 94dB SPL @ 1kHz)

DYNAMIC RANGE:

112.6 dB (1kHz @ Max SPL)

POWER REQUIREMENTS:

7mA @ 48V phantom power

WEIGHT (G):

114g (single microphone)

DIMENSIONS:

Length: 98.7mm Diameter: 20mm
