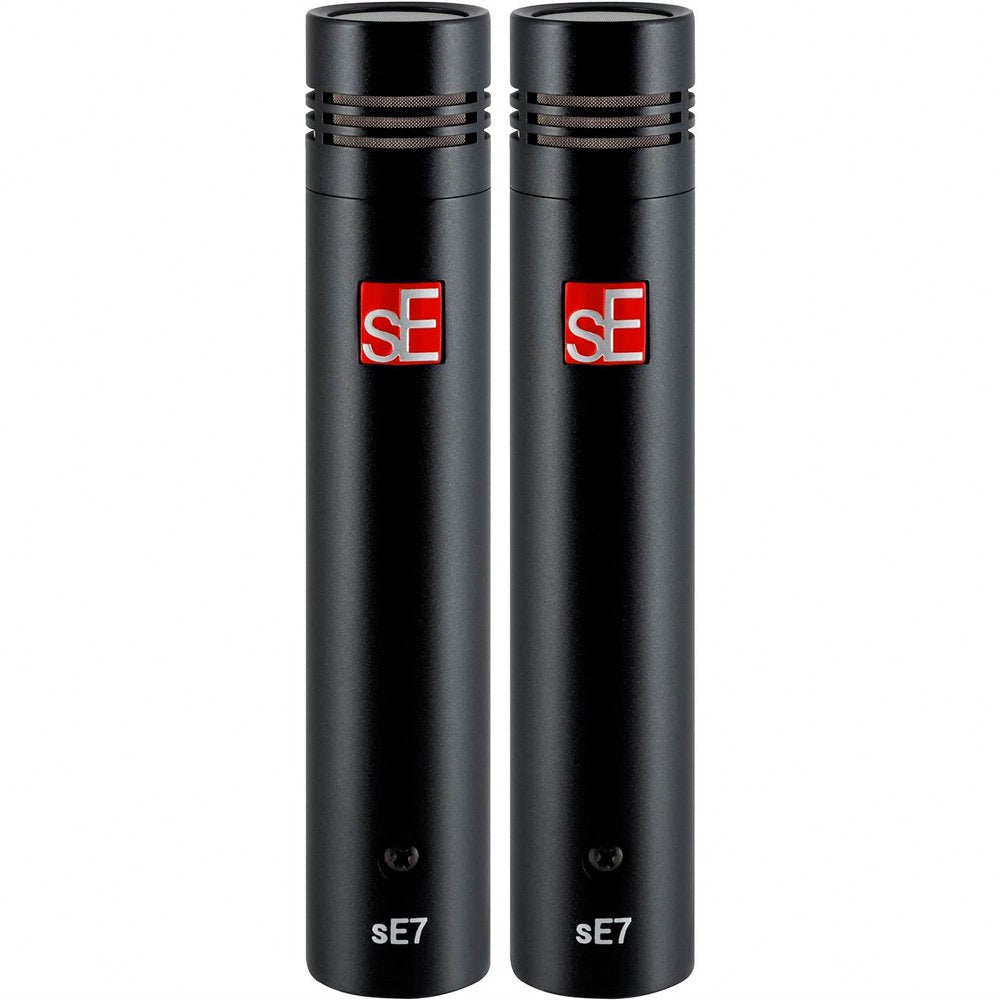

SE SE7SP

A COMPACT & CLASSY CONDENSER The sE7 is a high-quality back-electret small-diaphragm condenser microphone intended for a wide range of studio and live sound applications, from acoustic guitars to pianos to drums and beyond.

RECOMMENDED USE Stereo Pair for acoustic guitar, choir, orchestral + strings, piano, woodwinds, drums, percussion, cymbals / OH

• Optimized acoustic design, discrete class-A circuitry and a transformerless output

• Clear, natural sound quality at all frequencies

• Switchable -20dB attenuation pad

• High sound pressure level (SPL) handling capability

• Switchable low-cut 80 Hz filter

• Extremely low-noise components

COMPONENTS:

• Capsule:

:

1 / 2" Back-electret condenser capsule

POWER:

• Electrical impedance: <200 Ohms

• Recommended load impedance: >1k Ohms

• Connectivity: 3-pin male XLR connector

• Powering: 48V Phantom Power (P48 according to IEC 61938)

SOUND:

• Polar pattern: Cardioid

• Frequency range: 20 Hz - 20 kHz

• Sensitivity: 19 mV / Pa (-35 dBV)

• Max SPL: 136 / 156 dB (0 / 20 dB attenuation pad)

• Equivalent noise level: 16 dB

• Dynamic range: 120 / 140 dB (0 / 20 dB attenuation pad)

• Signal to noise ratio: 78 dB

• Low-cut filter: 80 Hz, 6 dB / Oct, switchable

• Attenuation pad: 20 dB, switchable

• Current consumption: 3.0 mA

DIMENSIONS:

• Mic Diameter: 23 mm (0.91 in.)

• Mic length: 120 mm (4.72 in.)

• Mic weight: 128 g (4.52 oz.)

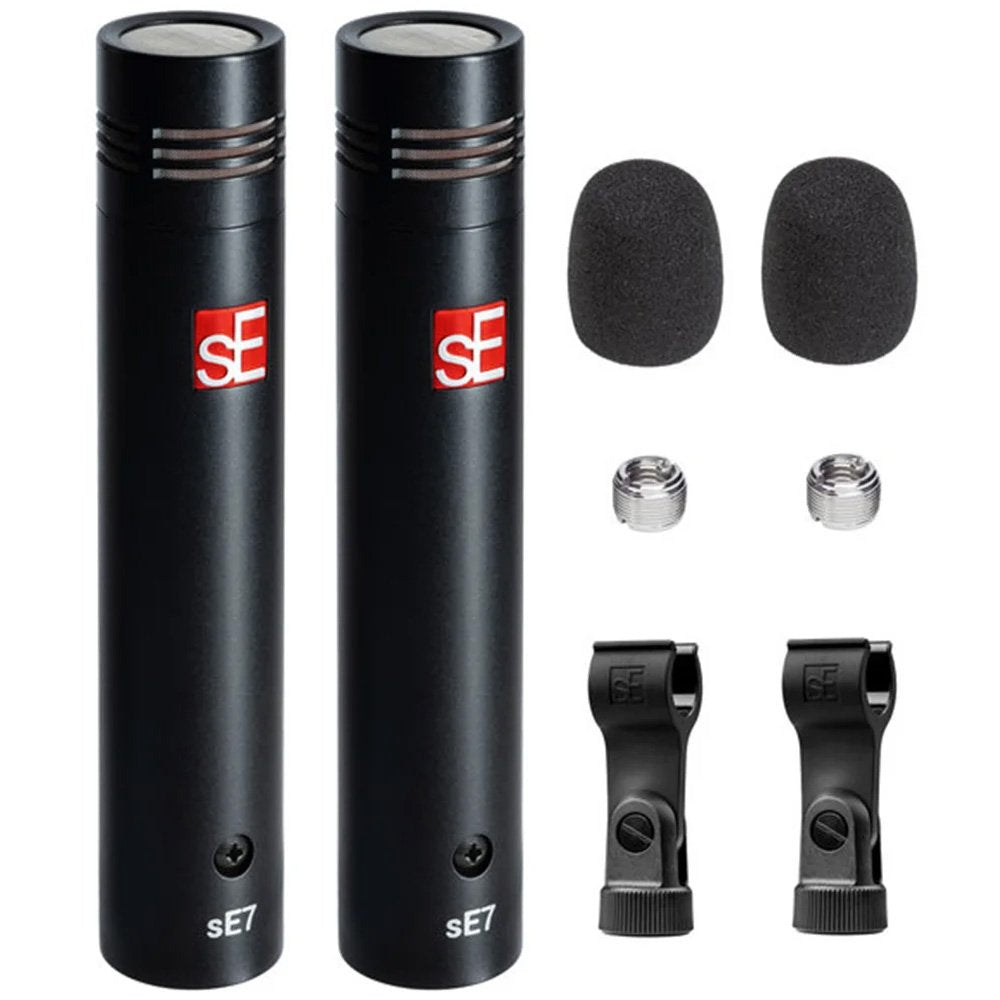

WHAT'S IN THE BOX:

• 2x sE7 microphone

• 2x mic clip (with thread adapter)

• 2x wind screen
