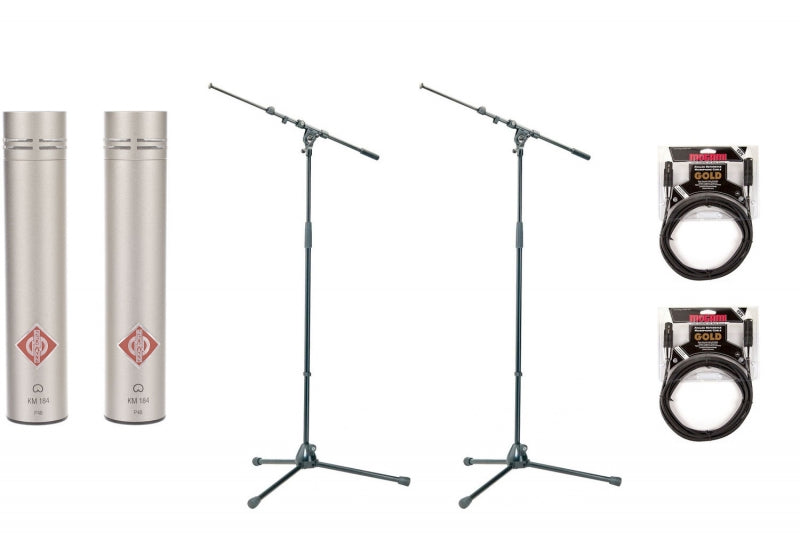

Neumann KM 184 Stereo Set with 2 x K&M 210/9 and 2 x Mogami Gold Studio 15'

Neumann KM 184 Stereo Set A matched pair of the famous Neumann KM 184 cardioid microphones offered in a wooden case with swivel clips and windscreens. The "180 series" consists of three compact miniature microphones with patterns that satisfy the demands of all common studio applications.

Because of its optimized mechanical construction and conscious omission of modularity, which is unnecessary in many cases, the "Series 180" is predestined for economy-minded production and home recording studios.

Applications Their slender shapes and the transmission characteristics described below make the "Series 180" especially suitable for a very wide range of tasks in the radio and television sector.

Acoustic features Although the KM 184 has the same capsule as the KM 84, the microphone differs slightly on the 0 frequency response: The KM 184 has a gentle rise at about 9 kHz, a characteristic that was introduced very successfully with the KM 140. The result is a tonal balance that is fresher and livelier when compared to the KM 84 with its flat frequency response in that band.

Electrical Features The "Series 180" microphones have the same transformerless circuitry as is used in the KM 100 system, resulting in excellent technical specifications:

Compared to the KM 84 the dynamic range of the KM 184 increased by 24 dB mainly through the reduction of self-noise level to only 22 dB (CCIR) and an increased sound pressure handlingcapability of up to 138 dB.

The microphones operate without any problems, even if the input of following equipment happens to be unbalanced, for example as in some DAT recorders. The output of the "Series 180", as in all Neumann microphones, is balanced and phantom (48V) powered.

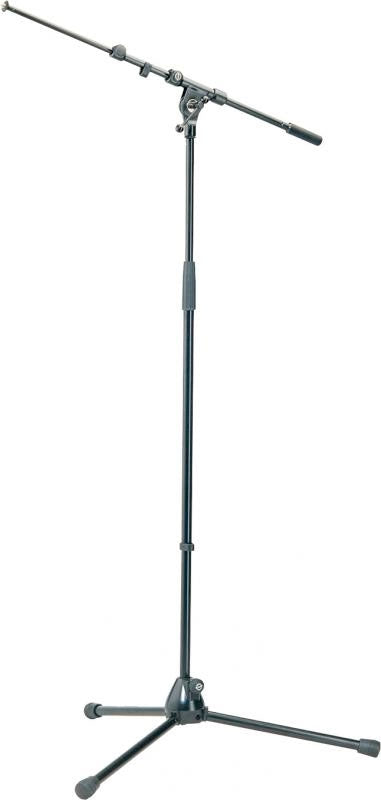

210/9 A more compact version of the classic 210/2. The combination of the long-legged 201A/2 mic stand and the 211/1 telescopic boom arm. Black finish. Like the 210/2, the 210/9 sets the standard for professional microphone boom stands.

Mogami 15 Feet - Black body/gold pin XLR connectors. Made with Mogami 2534 Quad cable. From large recording facilities to small project studios, engineers and artists trust Mogami Gold Studio microphone cables. Wired with Neglex studio quad, this 4-conductor cable offers the highest cancellation of noise and is the quietest, best sounding cable you can buy. Mogami Gold helps cure many of the problems encountered in a typical project or home studio, creating a pin-drop quiet recording environment with enhanced dynamic range.

NEUMANN KM 184 STEREO SET:

• Three different miniature microphones for all typical studio applications

• Successor of the worldwide successful KM 83/84

• Transformerless circuitry

• Trouble-free operation also with unbalanced equipment (e.g., DAT recorders)

• Set includes windshield and two different microphone clamps

KM 184 STEREO SET:

• Acoustical operating principle : Pressure gradient transducer

• Directional pattern : cardioid

• Frequency range : 20 Hz ... 20 kHz

• Sensitivity at 1 kHz into 1 kohm : 15 mV/Pa

• Rated impedance : 50 ohms

• Rated load impedance : 1000 ohms

• Equivalent SPL CCIR 468-3 : 22 dB

• Equivalent SPL DIN/IEC 651 : 13 dB-A

• S/N ratio CCIR 468-3 : 72 dB

• S/N ratio DIN/IEC 651 : 81 dB

• Maximum SPL for THD 0.5% : 138 dB

• Maximum output voltage : 10 dBu

• Supply voltage : 48 V ± 4 V

• Current consumption : 3.2 mA

• Matching connectors : XLR 3F

• Weight approx. : 80 g

• Diameter : 22 mm

• Length : 107 mm

K&M 210/9:

• Boom arm: 2-piece telescopic design

• Boom arm clamping: T-bar locking screw

• Boom arm length: from 435 to 745 mm

• Height: from 900 to 1,605 mm

• Height adjustment: clutch

• Leg construction: socket with foldable legs

• Material: steel

• Product Category: Topline

• Rod combination: 2-piece folding design

• Special features: stable and sturdy; zinc die-cast base

• Threaded connector: 3/8"

• Type: Black

• Weight: 3.19 kg

MOGAMI GOLD STUDIO 15':

• Wired with Neglex Studio Quad

• Offers superior clarity and freedom from noise/RF interference

• Terminated with black body 3-pin XLR connectors and gold contacts

• Lifetime warranty

INCLUDES:

1 x matched pair of Neumann KM 184

1 x Wooden case with swivel clips and windscreens

2 x K&M 210/9 Black

2 x Mogami Gold Studio 15' XLR
