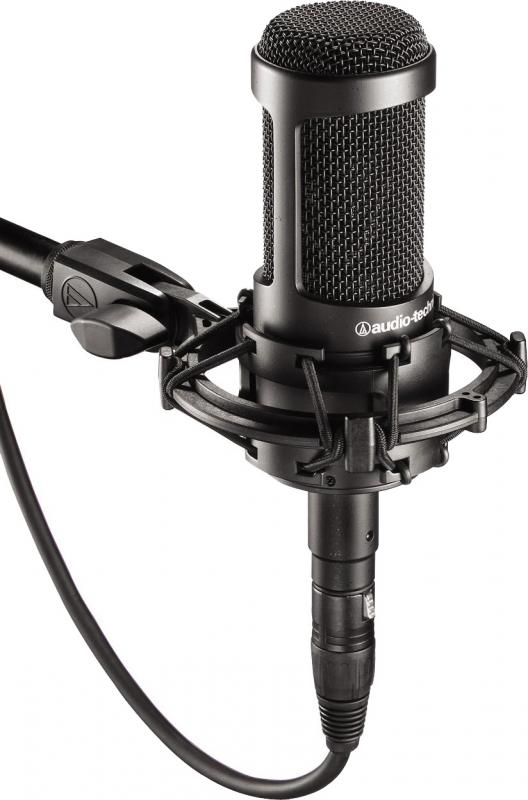

Audio Technica AT2035

This side-address cardioid studio condenser delivers exceptional detail and low noise. quipped with a switchable 80 Hz high-pass filter and 10 dB pad, the AT2035 handles high sound pressure levels with ease. Along with its rugged construction and high-performance specifications, the AT2035 provides an exceptional level of consistency from model to model. It comes equipped with a protective pouch and a custom shock mount.

• Large diaphragm for smooth, natural sound and low noise

• High SPL handling and wide dynamic range provide unmatched versatility

• Custom shock mount provides superior isolation

• Switchable 80 Hz high-pass filter and 10 dB pad

• Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source

• Includes custom shock mount & protective pouch

ELEMENT:

Fixed-charge back plate, permanently polarized condenser

POLAR PATTERN:

Cardioid

FREQUENCY RESPONSE:

20-20,000 Hz

LOW FREQUENCY ROLL-OFF:

80 Hz, 12 dB/octave

OPEN CIRCUIT SENSITIVITY:

-33 dB (22.4 mV) re 1V at 1 Pa

IMPEDANCE:

120 ohms

MAXIMUM INPUT SOUND LEVEL:

148 dB SPL, 1 kHz at 1% T.H.D.;

158 dB SPL, with 10 dB pad (nominal)

NOISE:

12 dB SPL

DYNAMIC RANGE (TYPICAL):

136 dB, 1 kHz at Max SPL

SIGNAL-TO-NOISE RATIO:

82 dB, 1 kHz at 1 Pa

PHANTOM POWER REQUIREMENTS:

11-52V DC, 3.8 mA typical

SWITCHES:

Flat, roll-off; 10 dB pad (nominal)

WEIGHT:

403 g (14.2 oz)

DIMENSIONS:

170.0 mm (6.69") long,

52.0 mm (2.05") maximum body diameter

OUTPUT CONNECTOR:

Integral 3-pin XLRM-type

ACCESSORIES FURNISHED:

AT8458 shock mount for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch

AUDIO-TECHNICA CASE STYLE:

R5
