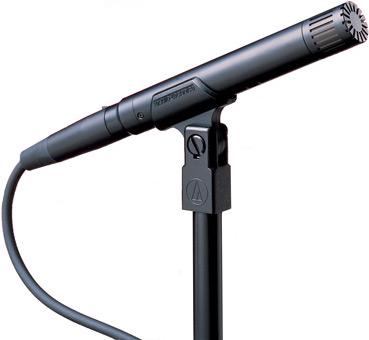

Audio Technica AT4051b

This versatile studio performer may be used with confidence in a wide variety of professional miking applications, even under the stringent demands of modern digital recording systems. Featuring direct-coupled balanced outputs for clean signals in high-output conditions, the microphone is totally free of the distortion associated with conventional transformer-coupled outputs. And its fast response to transients contributes to the open, transparent reproduction of even the most difficult-to-capture instruments.

• Direct-coupled, balanced output ensures a clean signal even in high-output conditions

• Exceptionally low self-noise, very high output and fast transient response

• Accepts optional interchangeable capsules: AT4049a-EL (omnidirectional) and AT4053a-EL (hypercardioid)

• Switchable 80 Hz hi-pass filter

• Turned-brass microphone housing with black chrome plating

• The AT4051a consists of two modular subassemblies: an AT4900a-48 body and an AT4051a-EL head capsule (both available separately)

•

ELEMENT:

: Externally polarized (DC bias) condenser

•

POLAR PATTERN:

: Cardioid

•

FREQUENCY RESPONSE:

: 20-20,000 Hz

•

LOW FREQUENCY ROLL-OFF:

: 80 Hz, 12 dB/octave

•

OPEN CIRCUIT SENSITIVITY:

: -34 dB (19.9 mV) re 1V at 1 Pa

•

IMPEDANCE:

: 100 ohms

•

MAXIMUM INPUT SOUND LEVEL:

: 146 dB SPL, 1 kHz at 1% T.H.D.

•

NOISE:

: 19 dB SPL

•

DYNAMIC RANGE (TYPICAL):

: 127 dB, 1 kHz at Max SPL

•

SIGNAL-TO-NOISE RATIO:

: 75 dB, 1 kHz at 1 Pa

•

PHANTOM POWER REQUIREMENTS:

: 48V DC, 3.2 mA typical

•

SWITCH:

: Flat, roll-off

•

WEIGHT:

: 4.2 oz (120 g)

•

DIMENSIONS:

: 6.10" (155.0 mm) long, 0.83" (21.0 mm) body diameter

•

OUTPUT CONNECTOR:

: Integral 3-pin XLRM-type

•

OPTIONAL INTERCHANGEABLE ELEMENTS:

: AT4049a-EL (omnidirectional); AT4053a-EL (hypercardioid)

•

ACCESSORIES FURNISHED:

: AT8405a stand clamp for 5/8"-27 threaded stands; AT8159 windscreen; protective carrying case

•

AUDIO-TECHNICA CASE STYLE:

: S1
