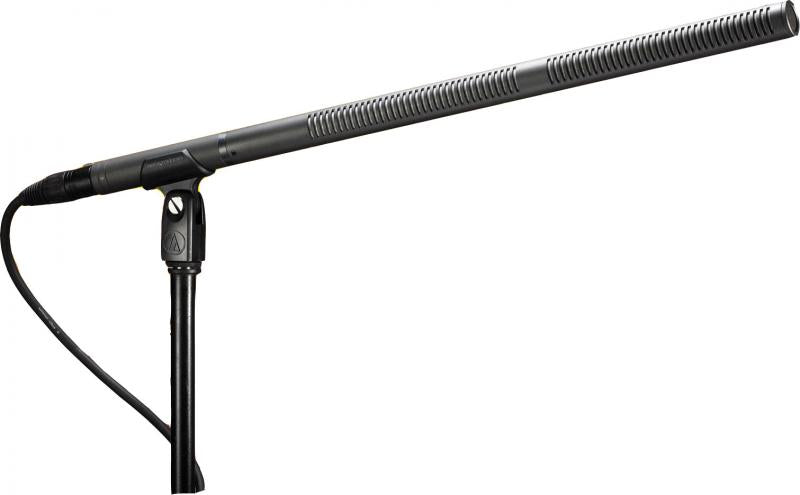

Audio Technica AT8015

The AT8015 provides the narrow acceptance angle desirable for long-distance sound pickup, along with excellent sound rejection from the sides and rear of mic. The roll-off position reduces the pickup of low-frequency ambient noise (such as traffic, air-handling systems, etc.), room reverberation and mechanically coupled vibrations.

• Designed for video production and broadcast (ENG/EFP) audio acquisition

• Provides the narrow acceptance angle desirable for long-distance sound pickup

• Excellent sound rejection from the sides and rear of mic

• Switchable low-frequency roll-off

• Operates on battery or phantom power

• RoHS compliantfree from all substances specified in the EU directive on hazardous substances

•

ELEMENT:

Fixed-charge back plate, permanently polarized condenser

•

POLAR PATTERN:

Line + gradient

•

FREQUENCY RESPONSE:

40-20,000 Hz

•

LOW FREQUENCY ROLL-OFF:

80 Hz, 12 dB/octave

•

OPEN CIRCUIT SENSITIVITY:

Phantom: -38 dB (12.5 mV) re 1V at 1 Pa, Battery: -39 dB (11.2 mV) re 1V at 1 Pa

•

IMPEDANCE:

: Phantom: 250 ohms, Battery: 300 ohms

•

MAXIMUM INPUT SOUND LEVEL:

Phantom: 132 dB SPL, 1 kHz at 1% T.H.D.- Battery: 120 dB SPL, 1 kHz at 1% T.H.D.

•

DYNAMIC RANGE (TYPICAL):

Phantom: 110 dB, 1 kHz at Max SPL, Battery: 98 dB, 1 kHz at Max SPL

•

SIGNAL-TO-NOISE RATIO:

72 dB, 1 kHz at 1 Pa

•

PHANTOM POWER REQUIREMENTS:

11-52V DC, 2 mA typical

•

BATTERY TYPE:

1.5V AA/UM3

•

BATTERY CURRENT / LIFE:

0.4 mA / 1200 hours typical (alkaline)

•

SWITCH:

Flat, roll-off

•

WEIGHT:

195 g (6.9 oz)

•

DIMENSIONS:

460.0 mm (18.11") long, 21.0 mm (0.83") diameter

•

OUTPUT CONNECTOR:

Integral 3-pin XLRM-type

•

ACCESSORIES FURNISHED:

AT8405a stand clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; AT8135 windscreen; battery; protective carrying case

•

AUDIO-TECHNICA CASE STYLE:

SG3
