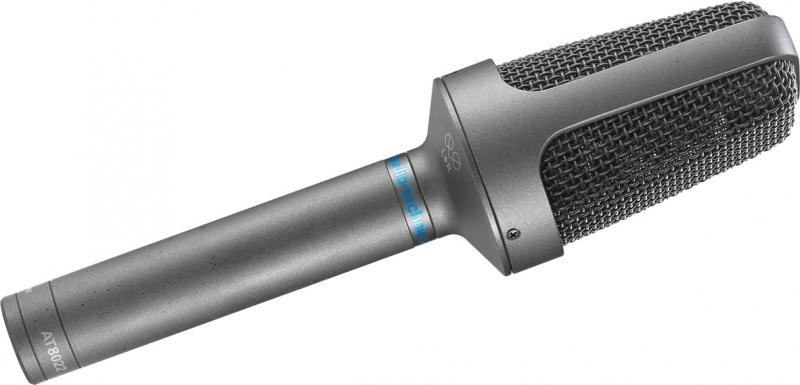

Audio Technica AT8022

The microphone is equipped with unbalanced outputs for use with readily available audio and video equipment. Its closely matched elements provide the spatial impact and realism of a live sound field. The mic offers excellent channel separation and switchable low-frequency roll-off.

• Ideal for DAT recording as well as television, FM and field applications

• Compact, lightweight design is perfect for camera-mount use

• Closely-matched elements provide the spatial impact and realism of a live sound field

• Excellent channel separation

• Switchable low-frequency roll-off

• Includes a 1.7' (0.5 m) cable (XLRF-type to stereo 3.5 mm mini-plug); and a 10' (3 m) cable (XLRF-type to two mono 3.5 mm mini-plugs)

• Battery operation only

•

ELEMENT:

Fixed-charge back plate permanently polarized condenser

•

POLAR PATTERN:

X/Y Stereo

•

FREQUENCY RESPONSE:

20-15,000 Hz

•

LOW FREQUENCY ROLL-OFF:

80 Hz, 12 dB/octave

•

OPEN CIRCUIT SENSITIVITY:

Phantom: -38 dB (12.5 mV) re 1V at 1 Pa, Battery: -38 dB (12.5 mV) re 1V at 1 Pa

•

CHANNEL BALANCE:

<2.5 dB

•

IMPEDANCE:

Phantom: 250 ohms, Battery: 300 ohms

•

MAXIMUM INPUT SOUND LEVEL:

Phantom: 128 dB SPL, 1 kHz at 1% T.H.D., Battery: 120 dB SPL, 1 kHz at 1% T.H.D.

•

DYNAMIC RANGE (TYPICAL):

Phantom: 109 dB, 1 kHz at Max SPL, Battery: 101 dB, 1 kHz at Max SPL

•

SIGNAL-TO-NOISE RATIO:

75 dB, 1 kHz at 1 Pa

•

PHANTOM POWER REQUIREMENTS:

11-52V DC, 2 mA typical (each channel)

•

BATTERY TYPE:

1.5V AA/UM3

•

BATTERY CURRENT / LIFE:

0.7 mA / 700 hours typical (alkaline)

•

SWITCH:

Battery On/Off; Flat, roll-off

•

WEIGHT:

247 g (8.7 oz)

•

DIMENSIONS:

186.0 mm (7.32") long, 47.6 mm (1.87") head diameter, 21.0 mm (0.83") maximum body diameter

•

OUTPUT CONNECTOR:

Integral 5-pin XLRM-type

•

CABLES:

Balanced: 2.0 m (6.5') long, 8 conductor, shielded, vinyl-jacketed stereo cable with 5-pin XLRF-type connector at microphone end and two 3-pin XLRM-type connectors at output end; Unbalanced: 0.6 m (2.0') long stereo cable with 5-pin XLRF-type connector at microphone end and 3.5 mm TRS connector at output end.

•

ACCESSORIES FURNISHED:

AT8405a stand clamp for 5/8"-27 threaded stands; windscreen; battery; soft protective pouch

•

AUDIO-TECHNICA CASE STYLE:

S12
